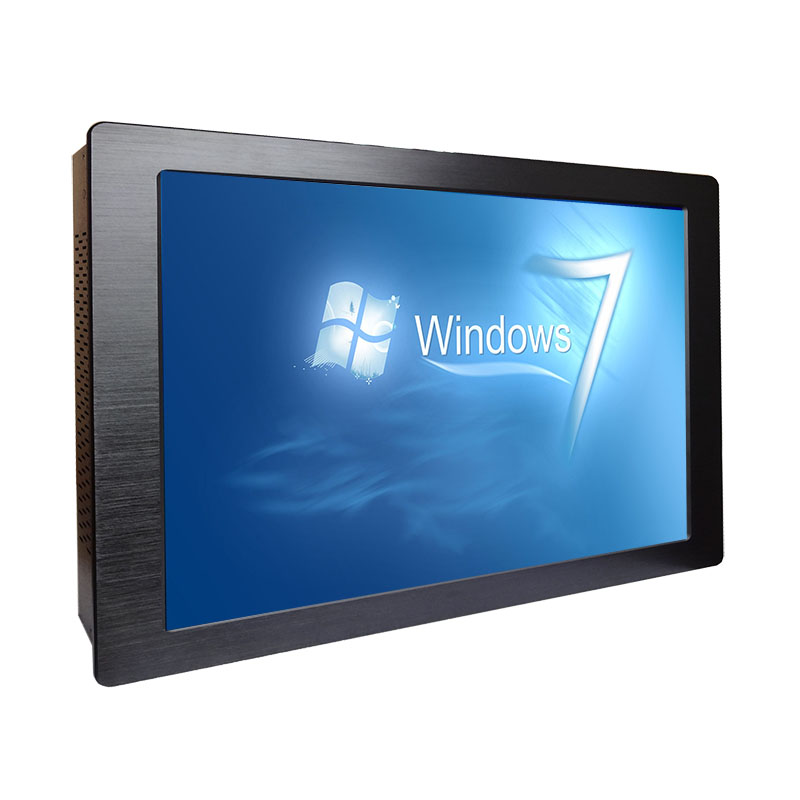

22 inch i7 i5 i3 Industrial all in one PC with touch screen

Model NO. IPC-22i7

Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

I7 All In One PC

I5 All In One PC

Features

22" TFT WSXGA LED Panel (1680 x 1050) with resistive touch screen
Supports Intel Core i7/i5/i3 processor
System supports 1 x DDR3 DIMM slot ,up to 8G 1066/1333MHz SDRAM
6x COM (1x RS485), 1xDVI, 1x PS/2, 1xVGA, 6x2.0 USB, 2xLAN, 1x AUDIO & MIC
Offers 1xPCI Expressx16 slot and 1 xMini PCIe slot, for expansion
Rear panel with power LED and HDD LED Indication, Built-in 2x 3 Watts stereo speaker
Wireless LAN with antenna (optional), GPIO (optional)
Robust aluminum with IP65 compliant front bezel design
Modularize design for easy installation and maintenance
Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm

Specifications

Main System

General

LCD display

Touchscreen

Environmental

Packing info

Ordering informations

IPC-22i7 22" Industrial Panel PC with Intel i7/i5/i3 Processor, 2.5"SATA SSD/ HDD size optional (Preload 250G SSD), 4G RAM(8G optional), 6*COM(5* RS232.1 * 485), 1*VGA, 1* DVI,6*USB 2.0, 2*LAN, 1* Audio, 1* MIC, 1* PS2
IPC-22i7T 22" Industrial Panel PC IPC-22i7 with touchscreen
CPU Description Intel® Core™ i3-3240 Processor (3M Cache, 3.40 GHz)
Intel® Core™ i5-3470 Processor (6M Cache, up to 3.60 GHz)
Intel® Core™ i7-3770 Processor (8M Cache, up to 3.90 GHz)
Other LGA1155 socket CPU
