IPC-19i7

IPC-19i7

19 inches Intel Core i7 i5 i3 industrial panel PC with 1xPCI Expressx16

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [3] Images

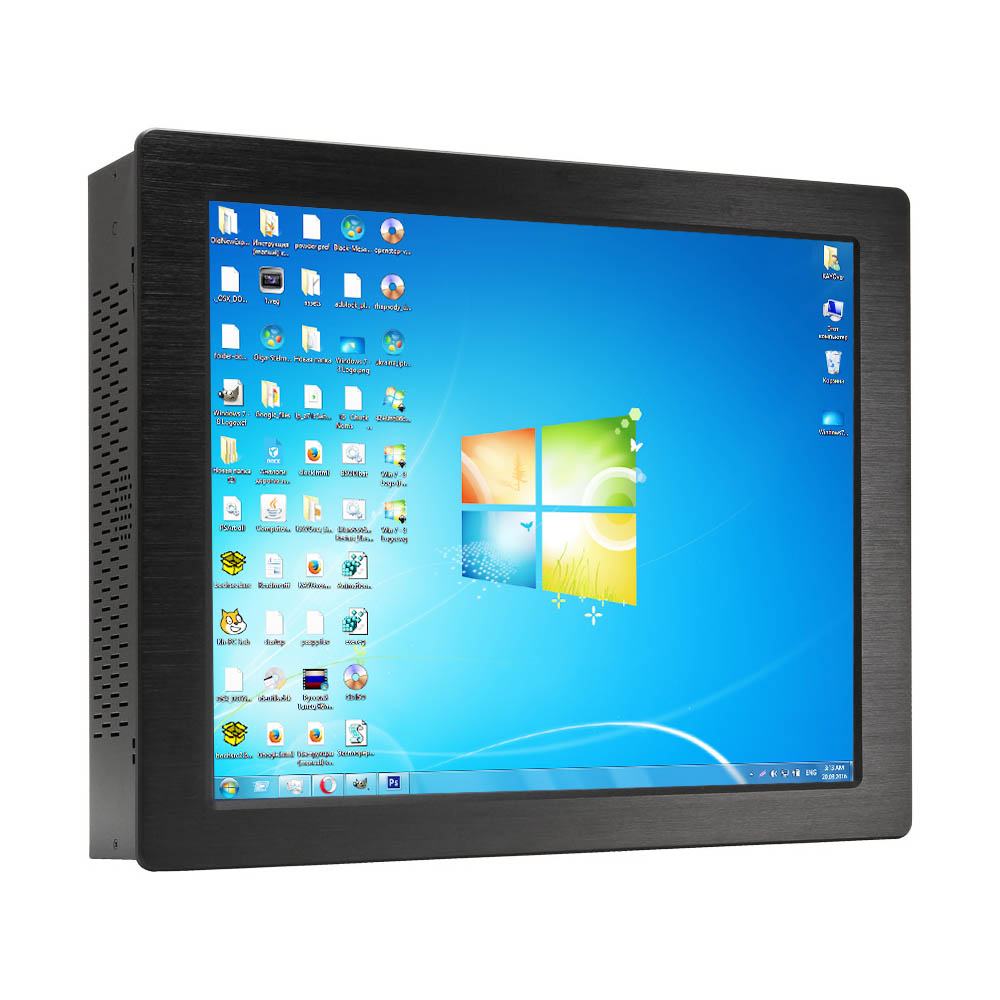

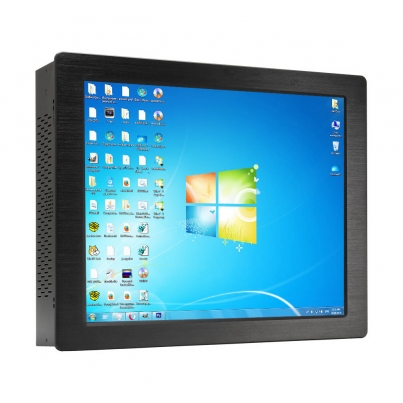

19 Inch Industrial Panel Pc
19 Inch Industrial Panel Pc

Industrial Panel Pc I7
Industrial Panel Pc I7

Industrial Panel Pc With 6COM 6USB I5 13 I7
Industrial Panel Pc With 6COM 6USB I5 13 I7

Features
  • 19" TFT SXGA LED Panel (1280 x 1024) with resistive touch screen
  • Supports Intel Core i7/i5/i3 processor
  • System supports 1 x DDR3 DIMM slot ,up to 8G 1066/1333MHz SDRAM

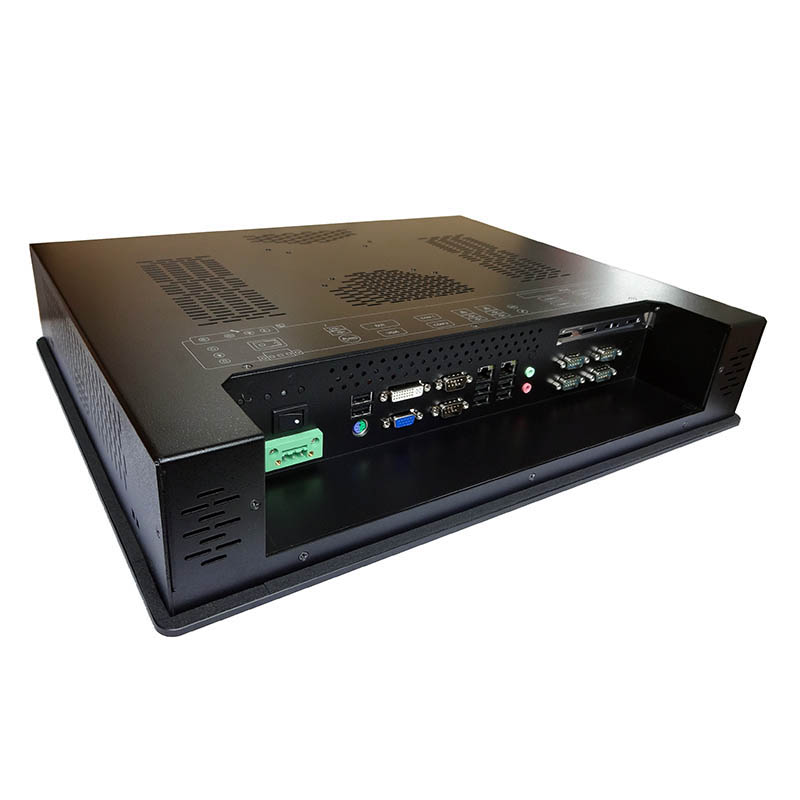

  • 6x COM (1x RS485), 1xDVI, 1x PS/2, 1xVGA, 6x2.0 USB, 2xLAN, 1x AUDIO & MIC
  • Offers 1xPCI Expressx16 slot and 1 xMini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication, Built-in 2x 3 Watts stereo speaker
  • Wireless LAN with antenna (optional), GPIO (optional)
  • Robust aluminum with IP65 compliant front bezel design
  • Modularize design for easy installation and maintenance
  • Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm
Specifications
Main System
  • CPU Intel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz FSB
  • Chipset Intel H61 chipset
  • System Memory Max 8 GB RAM; Preload 4GB RAM
  • LAN 2x Realtek ® RL8111x (Gigabit ) 10/100/1000Ethernet
  • HDD (hard disk ) 2.5" SATA HDD/ SSD; Preload 250GB SSD
  • Audio Realtek ® ALC662, 5.1 channel surround audio
  • I/O Connector 5 x RS-232
    1 x RS422/485
    1x DVI-D port
    1x PS/2 (Keboard/mouse)
    1x DB-15 Connector
    1x Audio (Mic-in / Line-out)
    2x 10/100/1000MLAN port ( RJ-45 )
    6x USB2.0
    1x 3Pin DC power input terminal block
  • Expansion 1xPCI Express x16 Slot, 1 x Mini PCIe slot
General
  • Construction Aluminum front bezel and Aluminum chassis
  • Color Black or OEM(>=100 units)
  • OS Support Windows 10/8/7, Windows XP, Linux
  • Mounting Panel mount or Standard VESA 75/100mm
  • Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating 92W
LCD display
  • Display type 19" SXGA TFT LCD LED Backlight
  • Resolution 1280 x 1024 pixels
  • Luminance 250 cd/m2
  • Viewing angle 170°(H) , 160°(V)
Touchscreen
  • Type Analog Resistive 5-wire
  • Controller Interface Internal USB interface controller
  • Resolution Continuous
  • Light Transmission 81% or more
  • Operating Force ≤100g
  • Life Expectancy 35 Million
Environmental
  • Operate Temperature -10°C~ 60°C (-14~140°F)
  • Storage Temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Humidity 10% to 90%@ 40°C , on-condensing
  • Vibration 17 to 500HZ 1G PTP
  • Operating Shock 1G /peak ( 11m sec)
  • Ingress Protection Front panel: IP65
Packing info

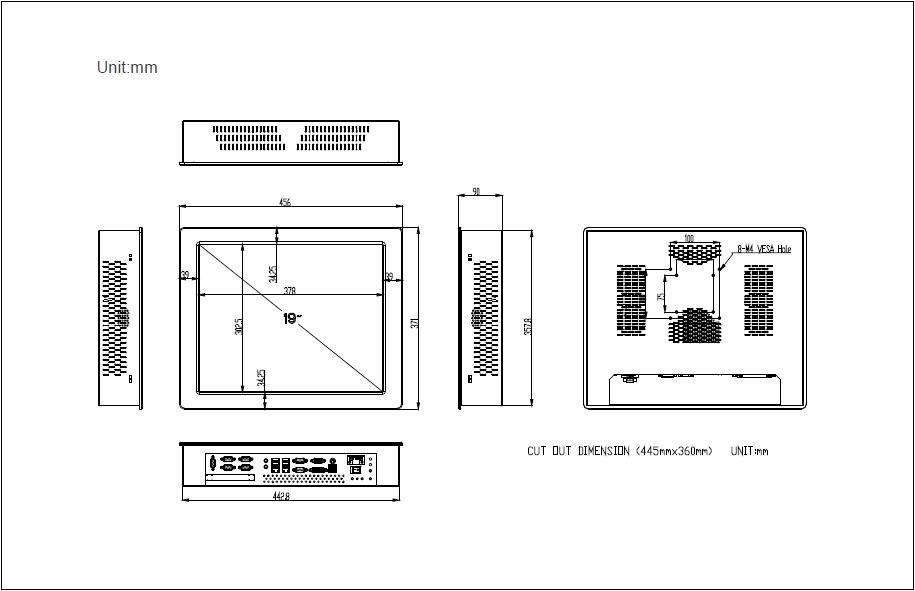

  • Dimensions(WxHxD) 456 x 371 x 90mm
  • NET weight 10 KG
Ordering informations
  • IPC-19i7 19" Industrial Panel PC with Intel i7/i5/i3 Processor, 2.5"SATA SSD/ HDD size optional (Preload 250G SSD), 4G RAM(8G optional), 6*COM(5*    RS232.1 * 485), 1*VGA, 1* DVI,6*USB 2.0, 2*LAN, 1* Audio, 1* MIC, 1* PS2
  • IPC-19i7T 19" Industrial Panel PC IPC-19i7 with touch screen
  • CPU Description Intel® Core™ i3-3240 Processor (3M Cache, 3.40 GHz)
    Intel® Core™ i5-3470 Processor (6M Cache, up to 3.60 GHz)
    Intel® Core™ i7-3770 Processor (8M Cache, up to 3.90 GHz)
    Other LGA1155 socket CPU
