Industrial monitors
Industrial panel monitor

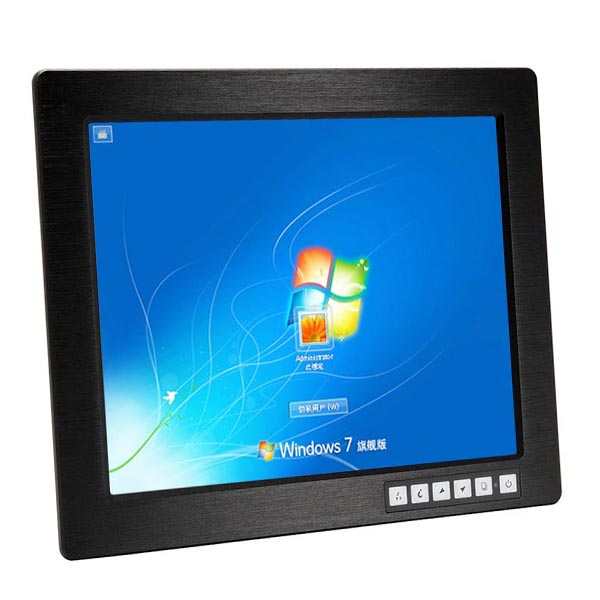

15 inch Industrial LCD Monitor with Touch Screen

15 inch Industrial LCD Monitor with Touch Screen

Model NO. IDM-15V

Customization OEM accepted

Datasheet (PDF) [2] Images

15 Inch Industrial Monitor

15 Inch Touch Screen Monitor

Features

15" TFT LCD Panel support 1024x768 pixels
Material: Aluminum magnesium Alloy
Rugged construction design
Input signal : VGA, HDMI, Audio
250 cd/m2 brightness
Resistive type of touchscreen
NEMA4/IP65 compliant front panel
Panel mounting with clip
Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting

Specifications

Display

Size 15"TFT LCD
Resolution 1024x768
Color 16M
Backlight 2xCCFL
Luminance 400 cd/m2
Contrast Ratio 450:1
View Angle 120°(H) , 110°(V)
LCD MTBF 50,000hrs

System

Construction Aluminum magnesium Alloy
Color Black

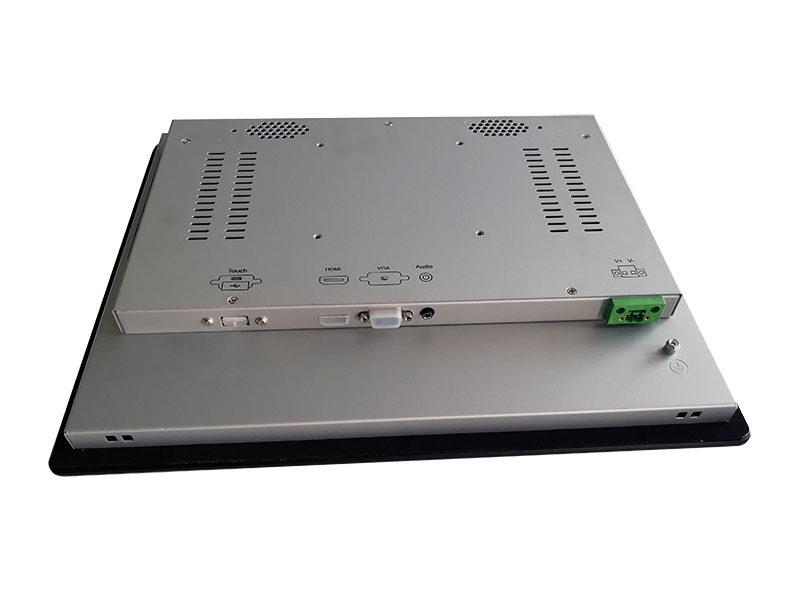

I/O DC input/VGA/HDMI/Audio/USB(COM optional)
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power Supply DC12V input

Touch screen

Type Resistive Touch screen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions

Environmental

Operate Temperature 0 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65
Safety FCC/VDE(Level A)
MBTF >50,000hrs

Packing info

Dimensions(WxHxD) 375 x 300 x 42 mm
Packing Dimension 530x440x150mm
NET weight 6KG

Ordering informations

IDM-15V Industrial monitor with 15" TFT LCD, 15" touch screen, VGA, HDMI, Audio
