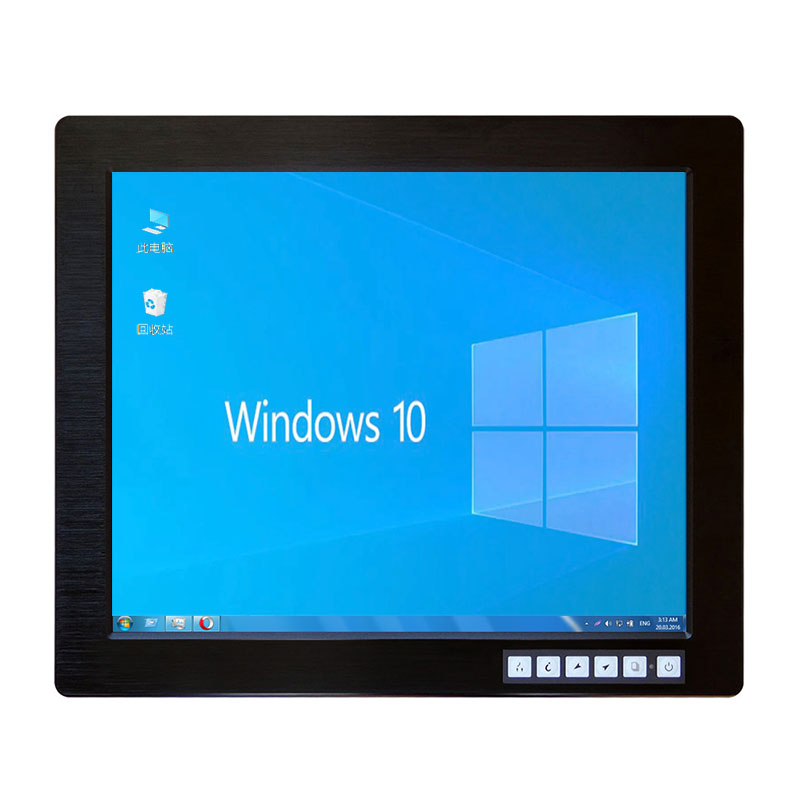

17 inch Industrial Display Touch Screen Monitor with HDMI VGA

17 inch Industrial Display Touch Screen Monitor with HDMI VGA

Model NO. IDM-17V

Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

17 Inch Industrial Monitor

17 Inch Touch Screen Monitor With HDMI

17 Inch Touch Screen Display

17 Inch Industrial Display With HDMI

Features

17" TFT LCD Panel support 1280x1024 pixels
6mm Aluminum magnesium Alloy Panel
Rugged construction design
Input signal : VGA + HDMI + Audio
300 cd/m2 brightness
Resistive touch screen
NEMA4/IP65 compliant front panel
Panel mounting with clip
Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting

Specifications

Display

Size 17"TFT LCD
Resolution 1280x1024
Color 16M
Backlight LED
Luminance 300 cd/m2
Contrast Ratio 700:1
View Angle 160°(H) , 140°(V)
LCD MTBF 50,000hrs

System

Construction Aluminum magnesium Alloy
Color Black
I/O DC input/VGA/HDMI/USB(COM optional)
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power Supply DC12V input

Touchscreen

Type Resistive Touchscreen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ≤250g
Life Expectancy 10 Millions

Environmental

Operate Temperature 0 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65
Safety FCC/VDE(Level A)
MBTF >50,000hrs

Packing info

Dimensions(WxHxD) 408x345x47mm
Packing Dimension 530x440x150mm
NET weight 8KG

Ordering informations

IDM-17V Industrial display with 17" TFT LCD, 17" Resistive touch screen, VGA HDMI Audio
