Industrial monitors
Industrial panel monitor

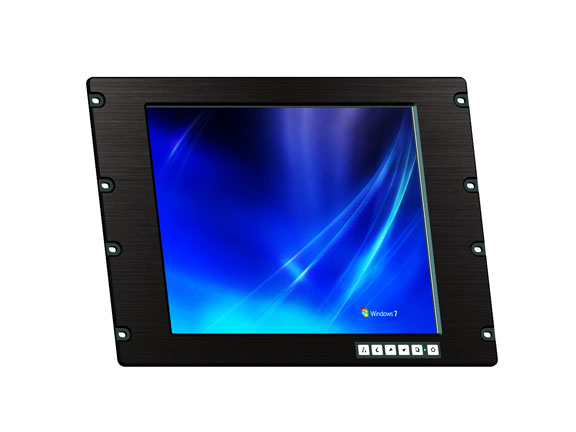

17 inches rack mount LCD monitor
RCPM-17
17 inches rack mount LCD monitor
Country of Origin: China
Customization OEM accepted
Datasheet (PDF)
Dimensions Drawing
[1] Images
17 Inch Rack Mount LCD Monitor
Features
Compact 17" rack mount LCD monitor with 8U height
17" SXGA TFT LCD Panel support 1280x1024 pixels
Input signal : VGA + DVI + AUDIO
300 cd/m2 brightness
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter . Heavy duty steel chassis with strengthen glass (Touch option)
Build in 2x2 watts stereo speaker . Meet standard VESA hole ( 100x100 mm ), support desk top stand / wall mount/ swing arm mounting
Specifications
Display
Display Type
17" SXGA TFT LCD
Resolution
1280x1024
Max.color
16.7M
Luminance
300 cd/m2
View Angle
178°(H) , 178°(V)
Pixel Pitch
0.264 x 0.264mm
Contrast Ratio
1000:1
Response Time
5 ms
LCD MTBF
50,000hrs
Input Signals
RGB Signal
D-SUB 15P Connector (female)
DC input
Aviation 2pin Plug
DVI-D Signal
DVI-D input 24pin connector (female)
Touch screen RS232 (option)
D-SUB 9p connector (female)
Touch screen USB (option)
USB-A type connector (female)
Available Options
Touch screen
Resistive Type with USB and RS232 controller
DC Power Input
Wide Range 8~30v DC input
Power supply
Standard
100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power
DC 8 ~ 30v input power module(optional)
Environmental
Construction
Heavy duty steel and aluminum front panel
Operate temperature
0°C to 50°C
Storage temperature
-20°C to 60°C
Storage humidity
10% to 90% non-condensing
Anti-Vibration
17HZ-500 HZ 1G PTP
Anti-Shock
1G / peak( 11m sec)
Certification and Approvals
CE/FCC/ROHS
Packing info
Dimensions (WxHxD)
482.6 x 345 x 47 mm
Weight
Net:6.8kg , Gross:10kg
Ordering informations
RCPM-17
17" LCD Industrial Rack Mount LCD Monitor with VGA + DVI + Audio input
RCPM-17TC
17" LCD Industrial Rack Mount LCD Monitor with VGA + DVI + Audio input, with touch screen and RS232 controller
RCPM-17TU
17" LCD Industrial Rack Mount LCD Monitor with VGA + DVI + Audio input, with touch screen and USB controller
