IDM-215W

IDM-215W

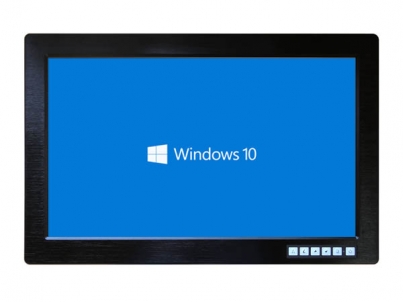

21.5 Inch LCD 1920X1080 Industrial Widescreen Monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [3] Images

Widescreen Monitor
Widescreen Monitor

LCD Monitor 1920X1080
LCD Monitor 1920X1080

Widescreen LCD Monitor
Widescreen LCD Monitor

Features
  • 21.5" widescreen LCD Panel support 1920 x 1080 pixels

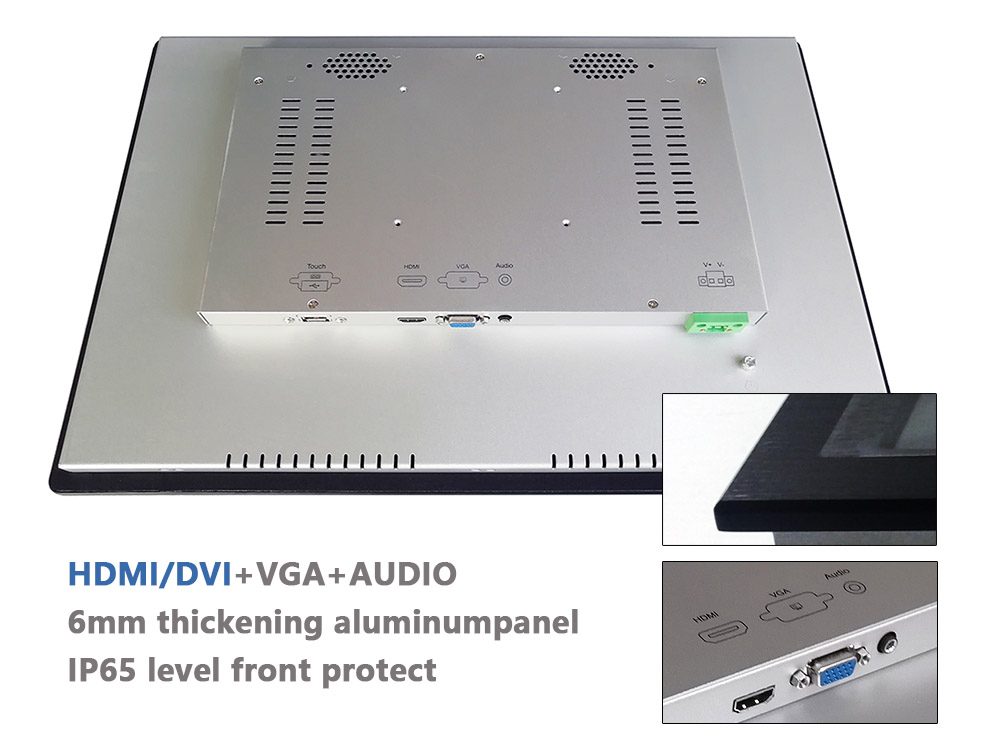

  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Flat, sealed and modularized design

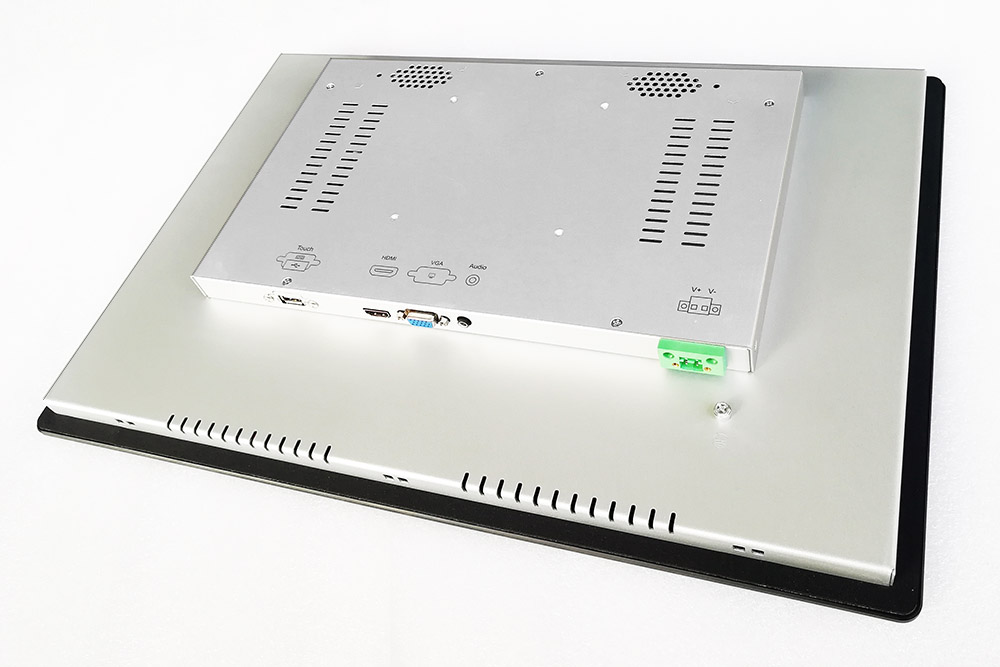

  • Direct VGA, HDMI/ DVI input interfaces
  • OSD control keys to optimize the display (Optional)
  • Power adapter with AC 100 V ~ 240 V input and DC +12 V  output
  • Optional 9 ~ 36 VDC power input
  • NEMA4 / IP 65 compliant front panel
  • Supports panel, wall, desktop, rack or VESA arm mounting
Specifications
LCD Panel
  • Display Type 21.5" Wide Screen LCD
  • Resolution 1920 x 1080
  • Max.color 16.7M
  • Luminance 250 cd/m2
  • View Angle 170°(H) , 160°(V)
  • Contrast Ratio 1000:1
  • Response Time 5 ms
  • Backlight Life 40,000hrs
System
  • Touch screen(optional) Resistive touch screen(RS232/USB)
  • Input Signals VGA, HDMI/DVI, Audio
  • Power Supply 100~240V AC,50/60Hz, DC 12V external ac adapter
  • DC Power (Optional) DC 9~ 36V input power module
Mechanical and Environmental
  • IP Level NEMA4 / IP 65 front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Dimensions (WxHxD)

    545  x 375 x 45 mm

  • Weight Net: 7.6kg , Gross:10.1 kg
Ordering informations
  • IDM-215W 21.5" wide screen industrial panel monitor with VGA, HDMI/DVI, Audio  input
  • IDM-215WT 21.5" wide screen industrial monitor VGA, HDMI/DVI, Audio, resistive touchscreen
