IDM-236W

IDM-236W

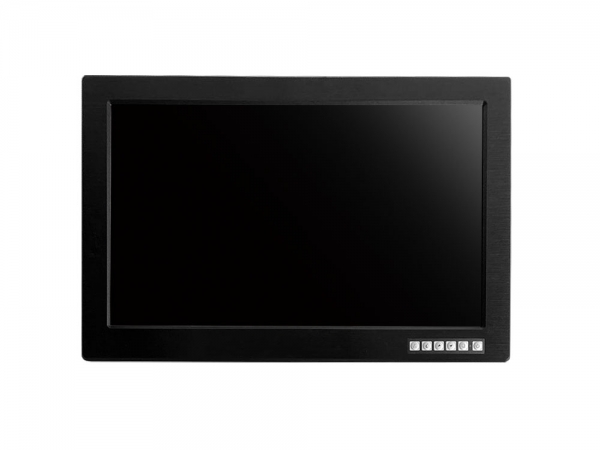

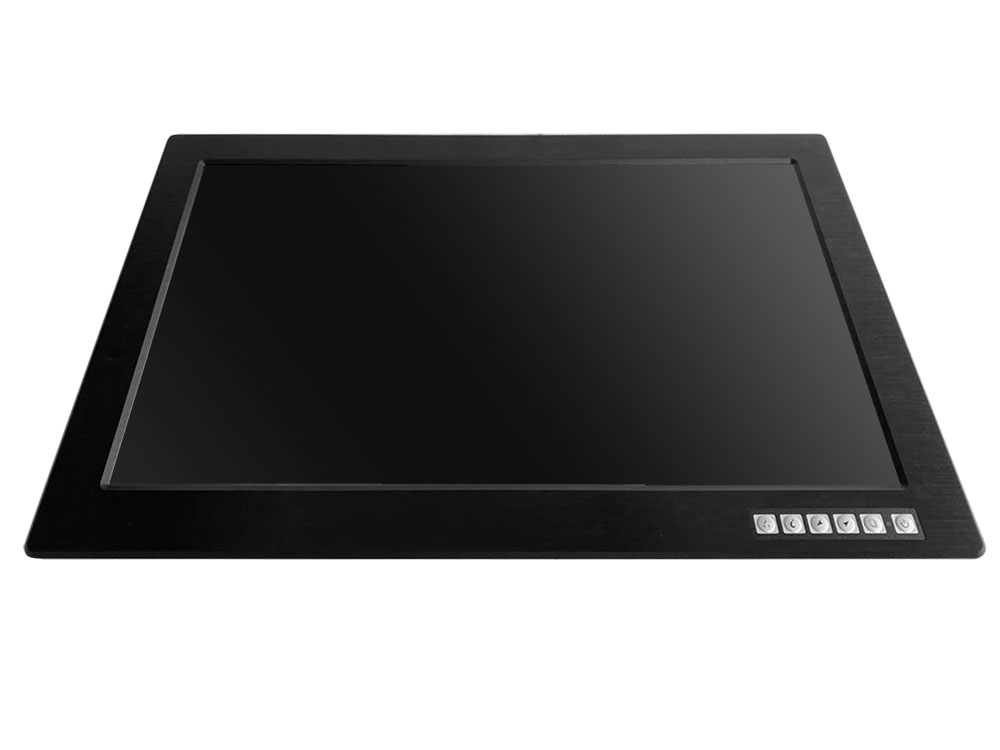

23.6 inch industrial lcd monitor with touch panel option

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Industrial Monitor 1920x1080 Pixels
Industrial Monitor 1920x1080 Pixels

Industrial Monitor 23.6 Inch
Industrial Monitor 23.6 Inch

23.6 Inch Lcd Monitor
23.6 Inch Lcd Monitor

23.6 Inch Industrial Monitor
23.6 Inch Industrial Monitor

Features
  • 23.6" FULL HD widescreen Panel support 1920x1080 pixels, 250 cd/m2 brightness

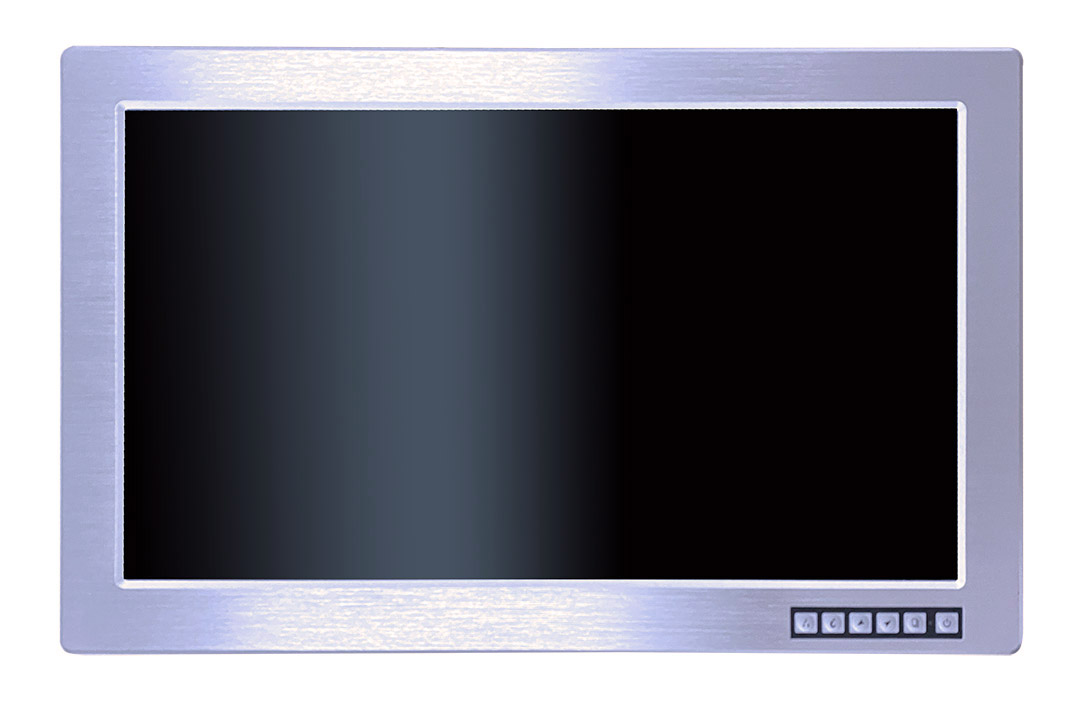

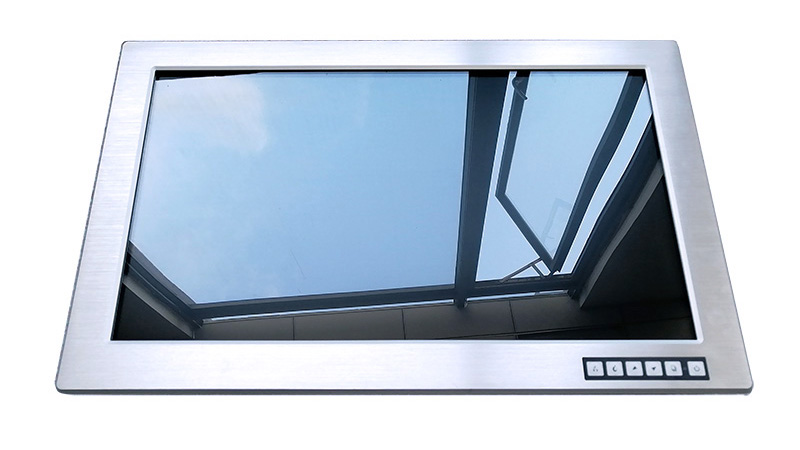

  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • VGA + DVI + Audio Input signal(AV Optional)
  • 2 x stereo speakers for industrial automation system voice output
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel

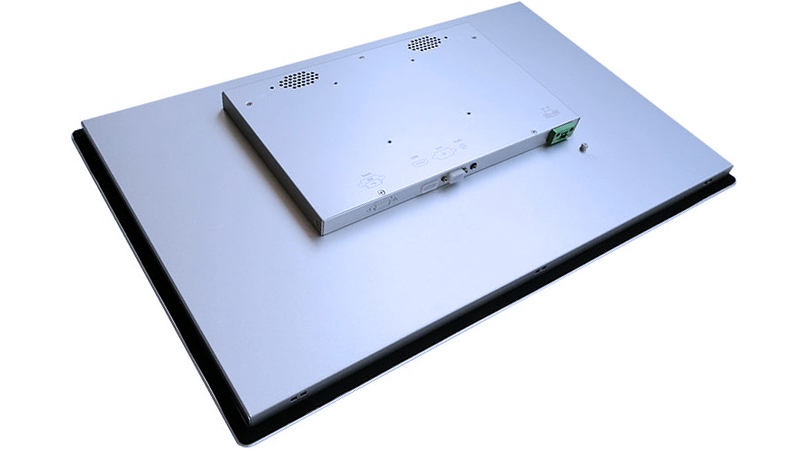

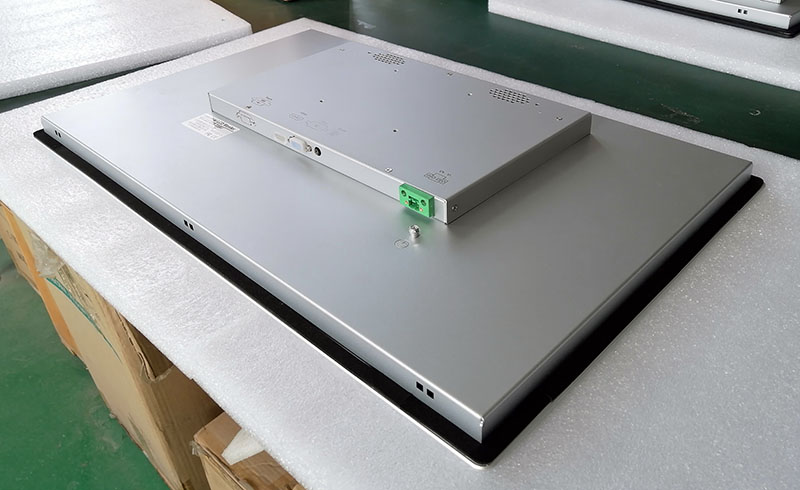

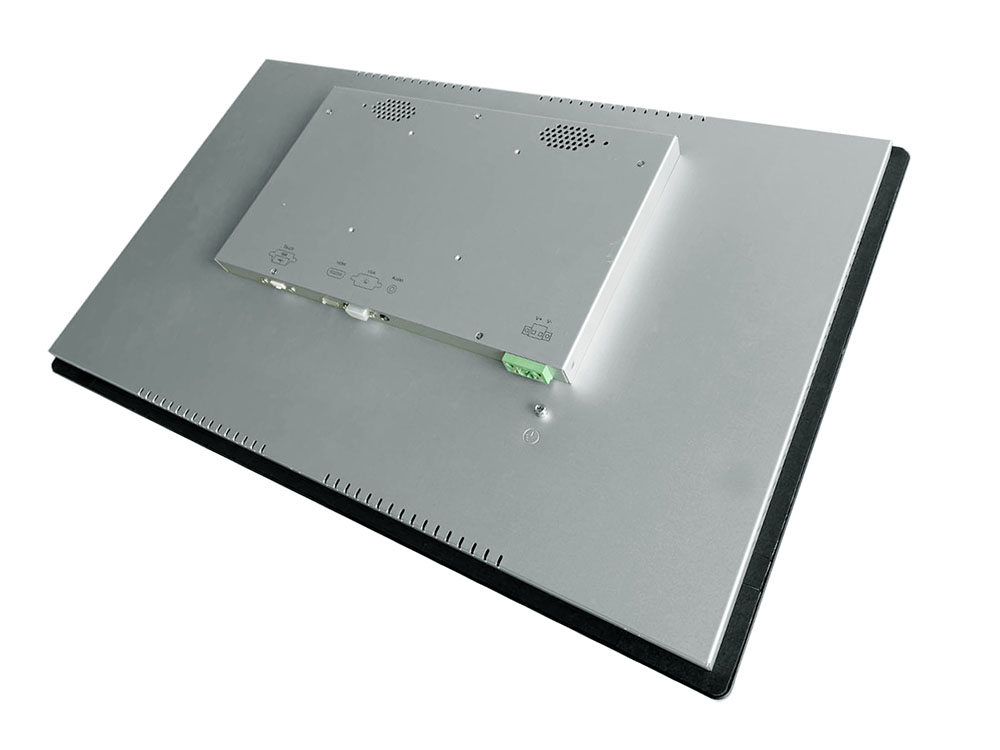

  • Panel (Flush) mount with bracket and standard VESA hole (100x100mm) for mounting
Specifications
Display
  • Display Type 23.6" LED FULL HD TFT LCD
  • Resolution 1920x1080
  • Max.color 16.7M
  • Luminance 250 cd/m2
  • View Angle 178°(H) , 178°(V)
  • Pixel Pitch 0.2715 x 0.2715 mm
  • Contrast Ratio 1000:1
  • Response Time 15 ms
  • Backlight Life 40,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input 2-Pin Terminal Block
  • HDMI Signal HDMI connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive type touch screen with USB  controller
  • DC Power Input Wide Range 9~36v DC input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 9 ~ 36v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10 °C to 60 °C
  • Storage temperature -20 °C to 70 °C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 605 x 380 x 47 mm
  • Weight Net: 8.0kg , Gross:10.5 kg
Ordering informations
  • IDM-236W 23.6" Industrial LCD Panel Monitor with VGA + HDMI + Audio input
  • IDM-236WT 23.6" Industrial LCD Panel Monitor with VGA + HDMI + Audio input, resistive touchscreen
