IDM-173W

IDM-173W

17.3 inch industrial 1920 x 1080 LCD widescreen monitor

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [3] Images

Industrial Widescreen Monitor
Industrial Widescreen Monitor

Industrial Monitor 1920 X 1080
Industrial Monitor 1920 X 1080

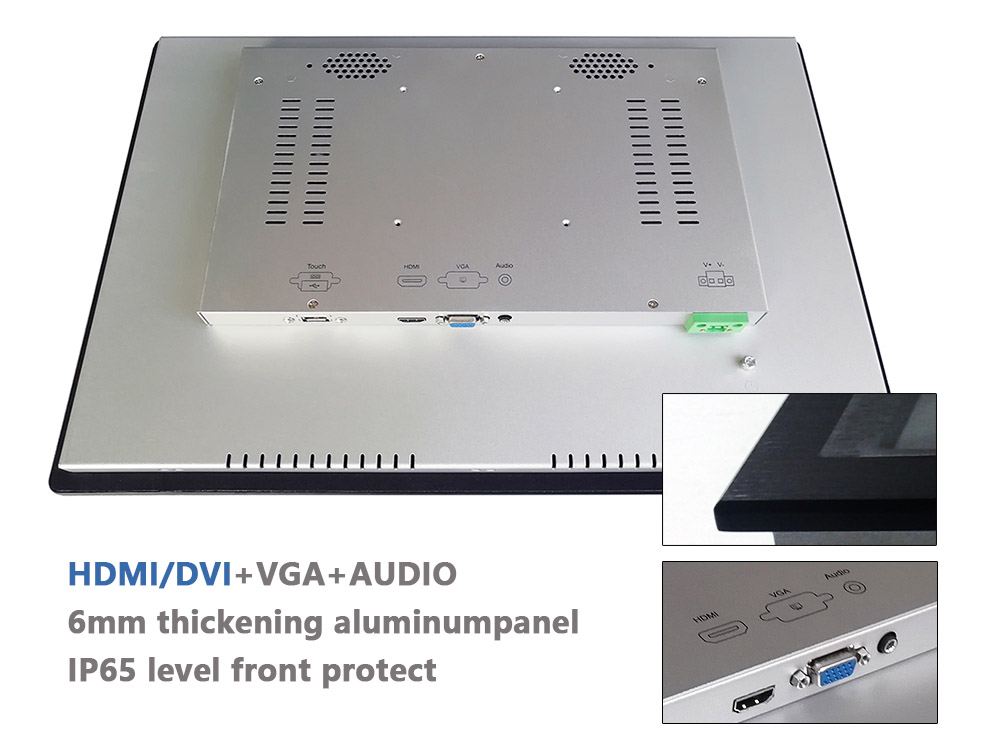

Industrial widescreen monitor [Photo.3]
Industrial widescreen monitor [Photo.3]

Features
  • 17.3" widescreen LCD Panel support 1920 x 1080 pixels, 250 cd/m2 brightness
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Flat, sealed and modularized design
  • Direct VGA, HDMI(DVI) input interfaces
  • OSD control keys to optimize the display (Optional)
  • Power adapter with AC 100 V ~ 240 V input and DC +12V  output
  • Optional 9 ~ 36 VDC power input
  • NEMA4 / IP 65 compliant front panel
  • Supports panel, wall, desktop, rack or VESA arm mounting
Specifications
Display
  • Display Type 17.3" Widedcreen LCD(Led Backlight)
  • Resolution 1920 x 1080
  • Max.color 16.7M
  • Luminance 250 cd/m2
  • View Angle 160°(H) , 140°(V)
  • Contrast Ratio 800:1
  • Response Time 25 ms
  • Backlight Life 40,000hrs
system
  • Touch screen(optional) Resistive touch screen(RS232/USB)
  • Input Signals VGA, HDMI/DVI, Audio
  • Power Supply 100~240V AC,50/60Hz, DC 12V external ac adapter
  • DC Power (Optional) DC 9~ 36v input power module
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 440x 302.5 x 45 mm
  • Weight Net: 8.5kg , Gross: 9.9kg
Ordering informations
  • IDM-173W 17.3" widescreen Full HD LCD industrial panel monitor with VGA, HDMI/DVI, Audio input
  • IDM-173WT 17.3" widescreen Full HD LCD Industrial Panel Monitor with VGA, HDMI/DVI, Audio, USB/COM resistive touch screen
