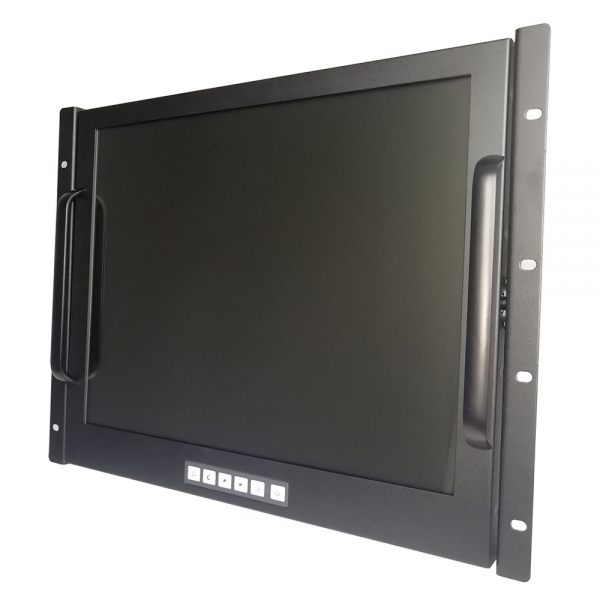

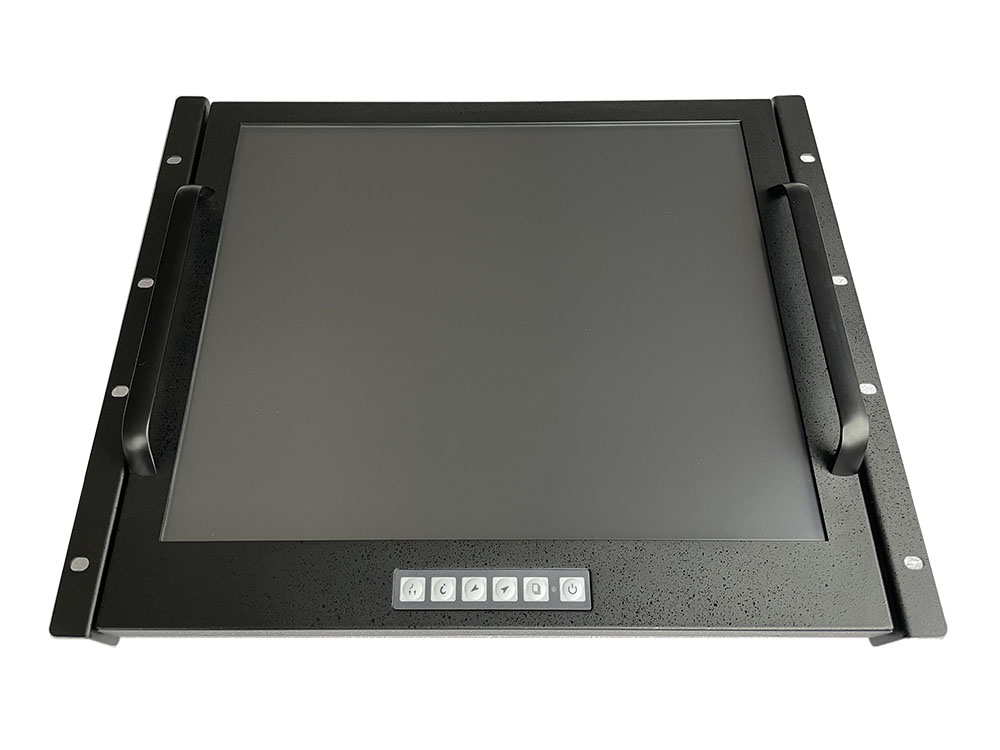

19 inches rack mount display monitor

19 inches rack mount display monitor

Model NO. RCIM-19

Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

Rackmount Display

Rackmount Monitor

Rack Monitor

Rackmount Lcd Monitor Adds BNC Input

Features

Compact Rackmount 19" LCD display display with 8.5U height
19" SXGA TFT LCD Panel support 1280x1024 pixels
90°tilt adjustment while mounted in rack: +45°~ -45°

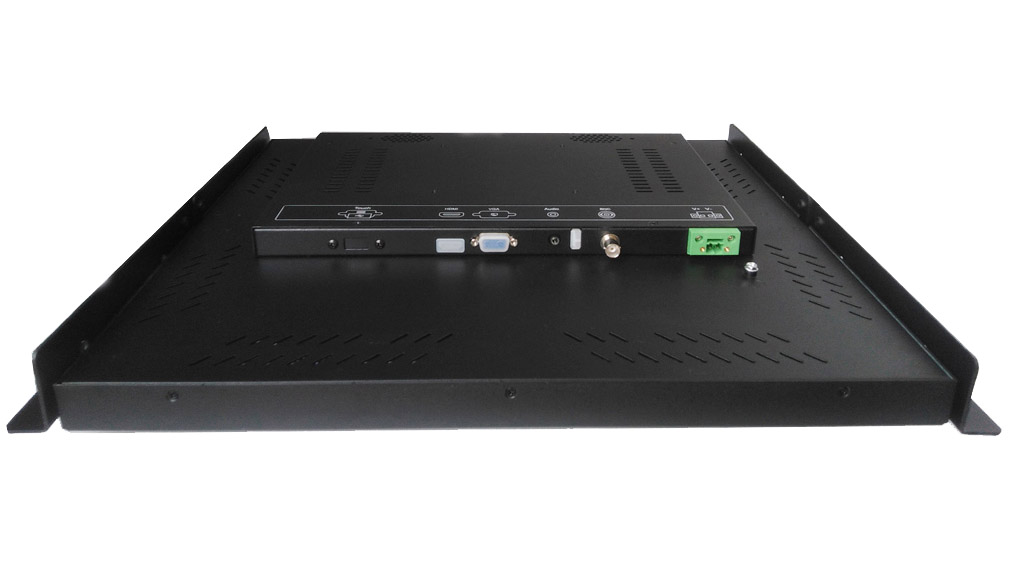

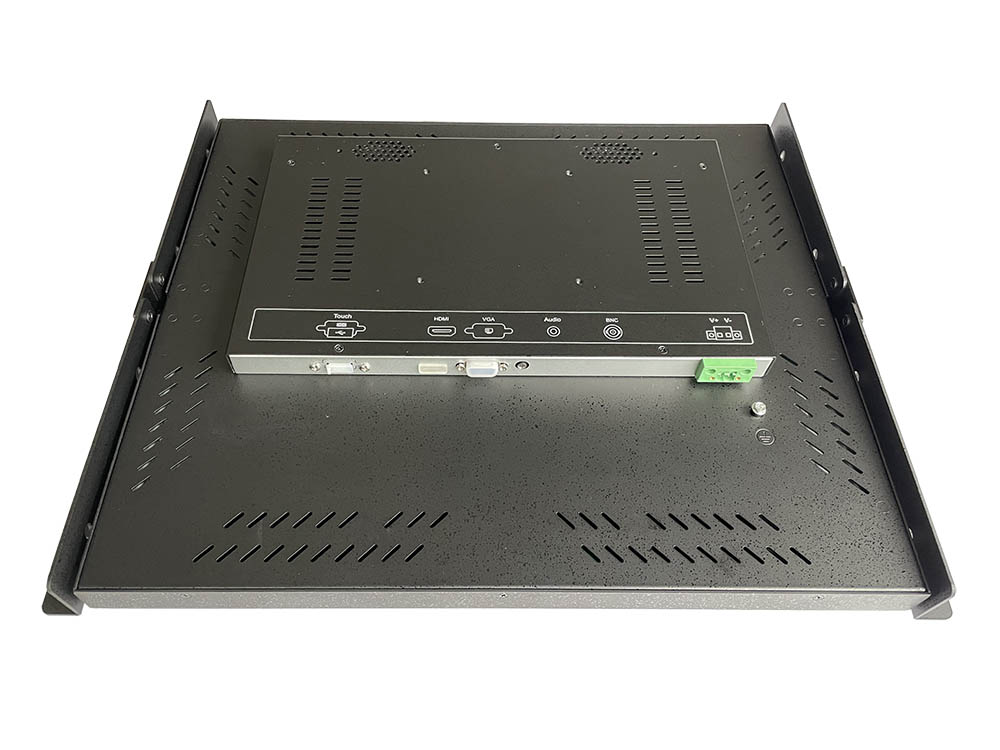

Input signal: VGA + HDMI/DVI + Audio
AV input, S-video and BNC are optional to add.
OSD control keys to optimize the display
AC 100-240V wide range external ac adapter
Heavy duty steel chassis with strengthen glass (Touch option)
Build in 2x2 watts stereo speaker
Standard rackmounting and with standard VESA hole (100x100 mm)

Specifications

Display

Display Type 19" SXGA TFT LCD
Resolution 1280x1024
Max.color 16.7M
Luminance 300 cd/m2
View Angle 160°(H) , 160°(V)
Pixel Pitch 0.294 x 0.294mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs

Sytem

Touch screen(optional) Resistive touchscreen(RS232/USB)
Input Signals VGA, HDMI/DVI, Audio
Power Supply 100~240V AC,50/60Hz, DC 12V external ac adapter
DC Power (Optional) DC 9~ 36V input power module

Mechanical and Environmental

Construction Heavy duty steel rackmountable chassis
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% ~ 95% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions (WxHxD) 482.6 x 377 x 48 mm
Weight Net: 8.0kg , Gross:11.0 kg

Ordering informations

RCIM-19 19" LCD Rack Mount Industrial display with VGA + DVI/HDMI + Audio Input
RCIM-19TU 19" LCD Rack Mount display with VGA + DVI/HDMI + Audio Input, with touch screen and USB controller
RCIM-19TC 19" LCD Industrial Rack Mount display with VGA + DVI/HDMI + Audio Input, with touch screen and RS232 controller
