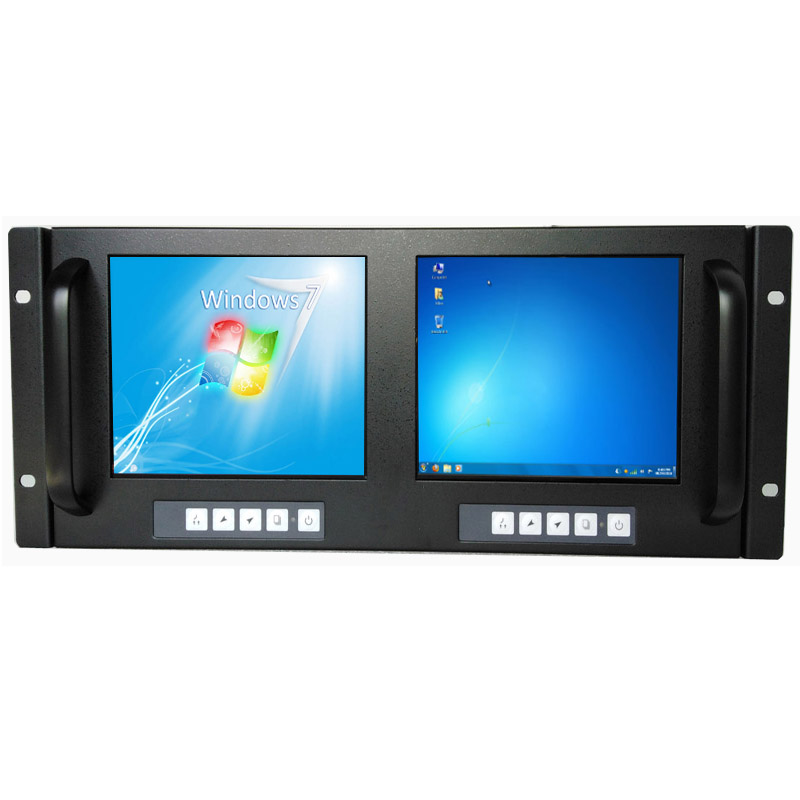

Rack mount dual 6 inch lcd monitor

Rack mount dual 6 inch lcd monitor

Model NO. RCIM-06

Customization OEM accepted

Datasheet (PDF) [2] Images

Dual LCD

Dual Lcd Monitor

Features

Rack mount dual 6" TFT LCD screen monitor, 3.5U Height
Construction:Heavy duty steel chassis
Input signal: VGA , Video,S-Video
Control: Front panel OSD Control
Power Supply: External 48W DC 12V power adapter
Video Source:NTSC/Pal and detect
Input per panel(total):1(2)composite,1(2)S-Video
90° tilt adjustment while mounted in rack:+45° ~-45° ( V )

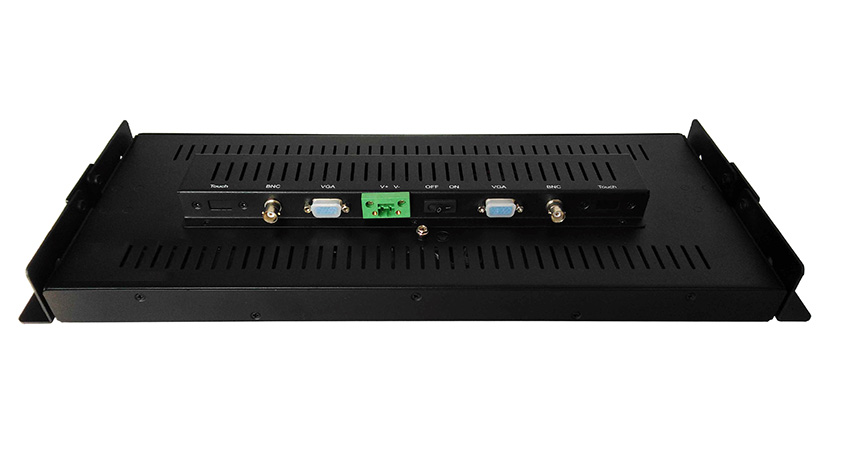

Signal Connector: 15 Pin mini D-SUB,Video,S-Video connector
Function Control: Power Switch, Menu, Select (+,-), Enter
OSD: Brightness, Contrast, H/V Position, Color, Phase, Clock, Management
Touch screen ( optional )

Specifications

Display

Display Type 6.5" VGA TFT LCD
Resolution 640x480
Max.color 262K
Luminance 400 cd/m2
View Angle 100°(H) , 50°(V)
Pixel Pitch 0.2025*0.203
Contrast Ratio 400:1
Response Time 40 ms
LCD MTBF 20,000hrs

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Heavy duty steel rackmountable chassis
Operate temperature 0°C to 50°C
Storage temperature -20°C to 60°C
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions (WxHxD) 482.6*153.6*62.6 mm
Weight Net: 6kg , Gross: 7 kg

Ordering informations

RCIM-06 Rack mount dual 6.4 " LCD screen monitor with VGA + S-Video + Video Input
RCIM-06TC Rack mount dual 6.4 " LCD screen monitor with VGA input + S-Video + Video Input, with touch screen and RS232 controller
RCIM-06TU Rack mount dual 6.4 " LCD screen monitor VGA input + S-Video + Video Input, with touch screen and USB controller
