IDMP-156WK

IDMP-156WK

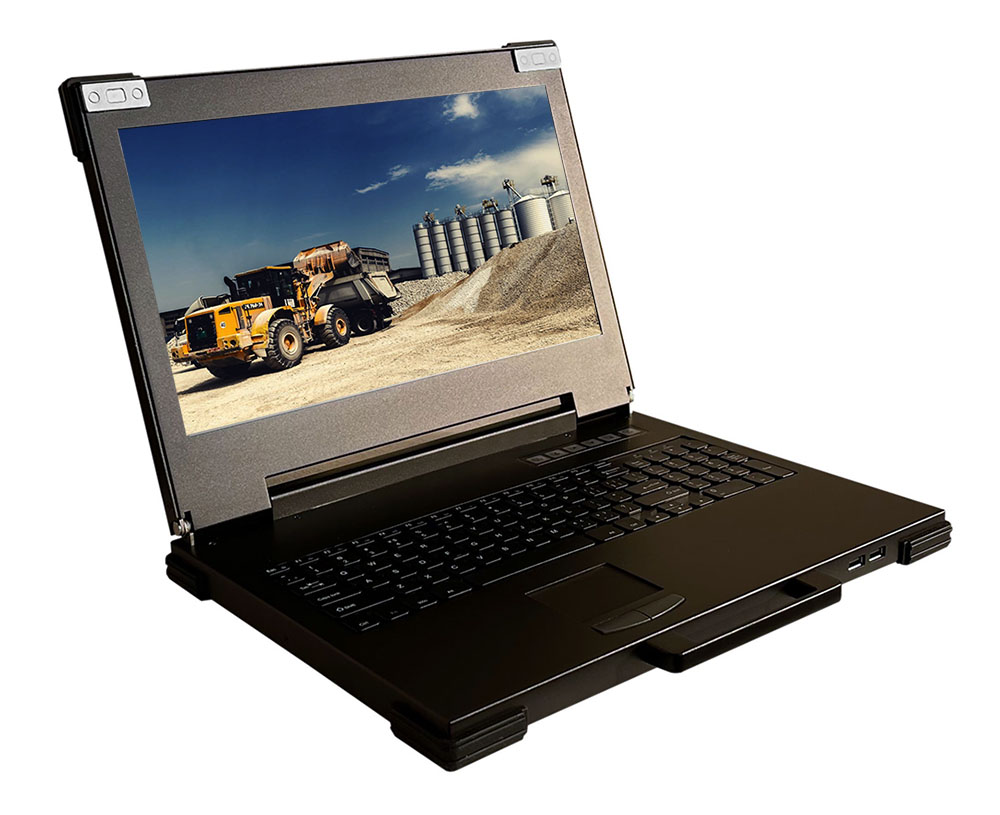

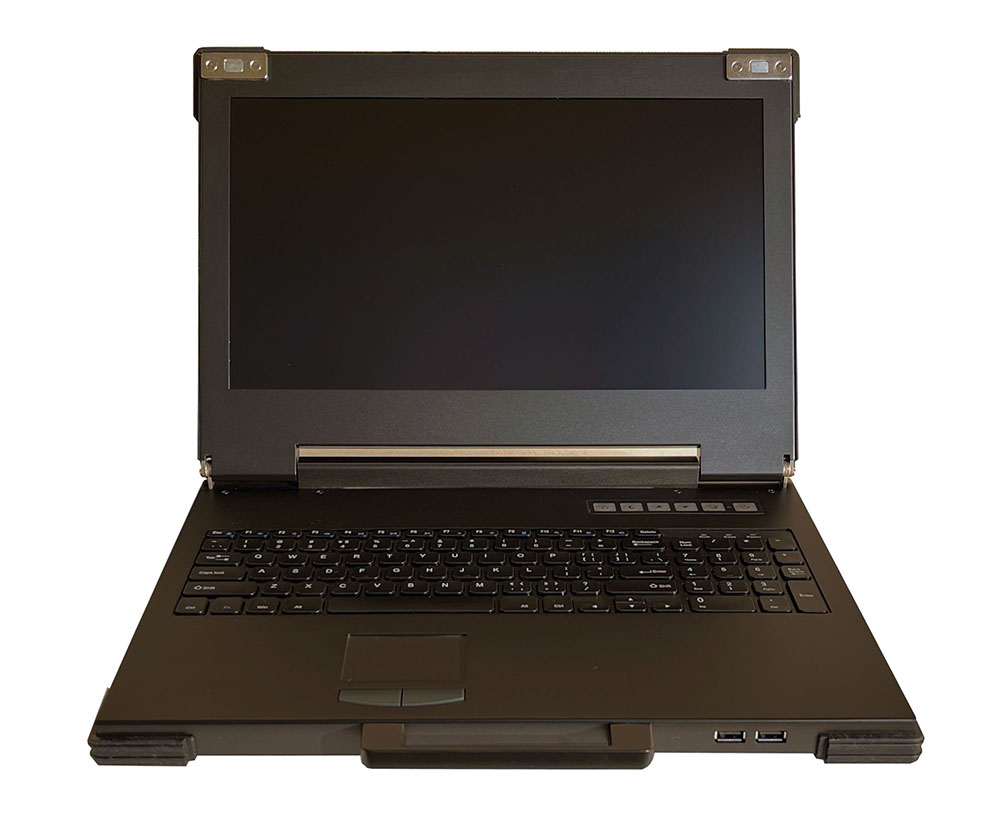

15.6 inch Ruggedized Portable LCD display Monitor Console with keyboard and touchpad

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Portable Lcd Monitor
Portable Lcd Monitor

Portable Lcd Display
Portable Lcd Display

Portable Monitor With USB TypeB
Portable Monitor With USB TypeB

Ruggedized LCD Monitor
Ruggedized LCD Monitor

Features
  • 15.6" Ruggedized Portable LCD display display Console with keyboard and touchpad
  • Portable folding design, with handle
  • Integrated with keyboard, touch-pad
  • 1920 x 1080 HD screen Ultra high resolution
  • Direct VGA, HDMI input interfaces
  • USB2.0 Type-B and Front 2xUSB2.0 Type-A, Sharing USB to computer (ex: flash disk, hard driver, KB/Mouse)
  • Touch screen RS232/USB is optional
Specifications
LCD Panel
  • Display Type 15.6" HD TFT LCD
  • Resolution 1920 x 1080
  • Max.color 16.7M
  • Luminance 250 cd/m2
  • View Angle 178°(H), 178°(V)
  • Contrast Ratio 3000:1
  • Response Time 15 ms
  • Backlight Life 50,000hrs
System
  • Keyboard & Mouse Integrated with keyboard, touch-pad

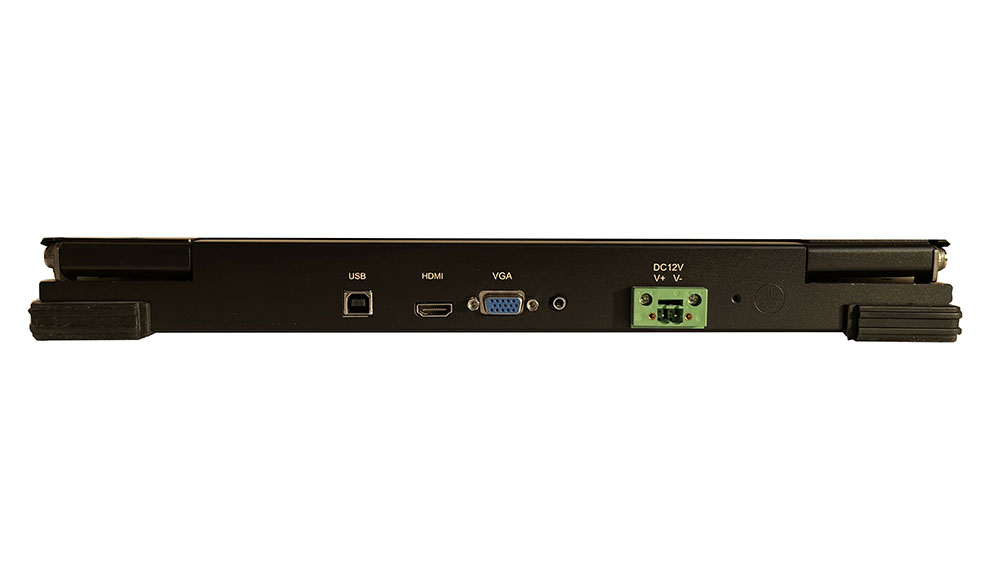

  • Input Signals VGA,HDMI
  • USB USB2.0 Type B & Front 2x USB2.0 Type A for USB Peripheral Device
  • Touch screen (optional) Resistive touch screen(RS232/USB)
  • Power Supply DC12v input, 100-240V AC 50/60Hz power adapter
  • DC Power (Optional) 9~36V DC input
Mechanical and Environmental
  • Construction Aluminium alloy chassis, foldable design
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 10% ~ 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Dimensions (WxHxD) 395 x 48.2 x 295mm
  • Weight Net: 6.5kg, Gross: 9.9kg
Ordering information
  • IDMP-156WK Rugged Portable LCD Display Console, 15.6" LCD, with VGA + HDMI input, DC 12V power adapter
  • IDMP-156WKTU IDMP-156WK + Touch screen(USB controller)
  • IDMP-156WKTC IDMP-156WK + Touch screen(RS232 controller)
