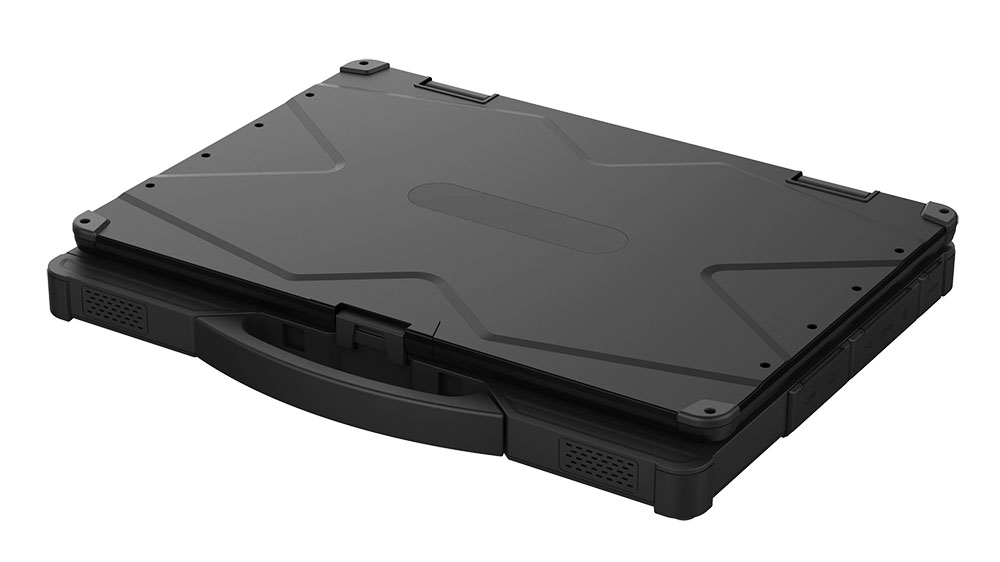

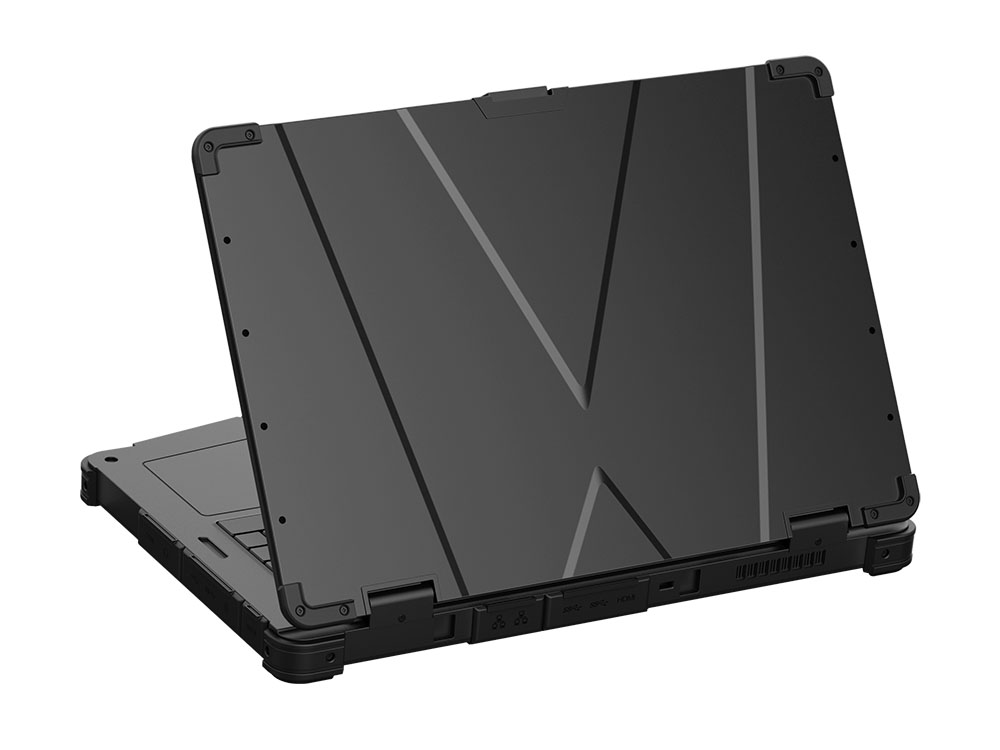

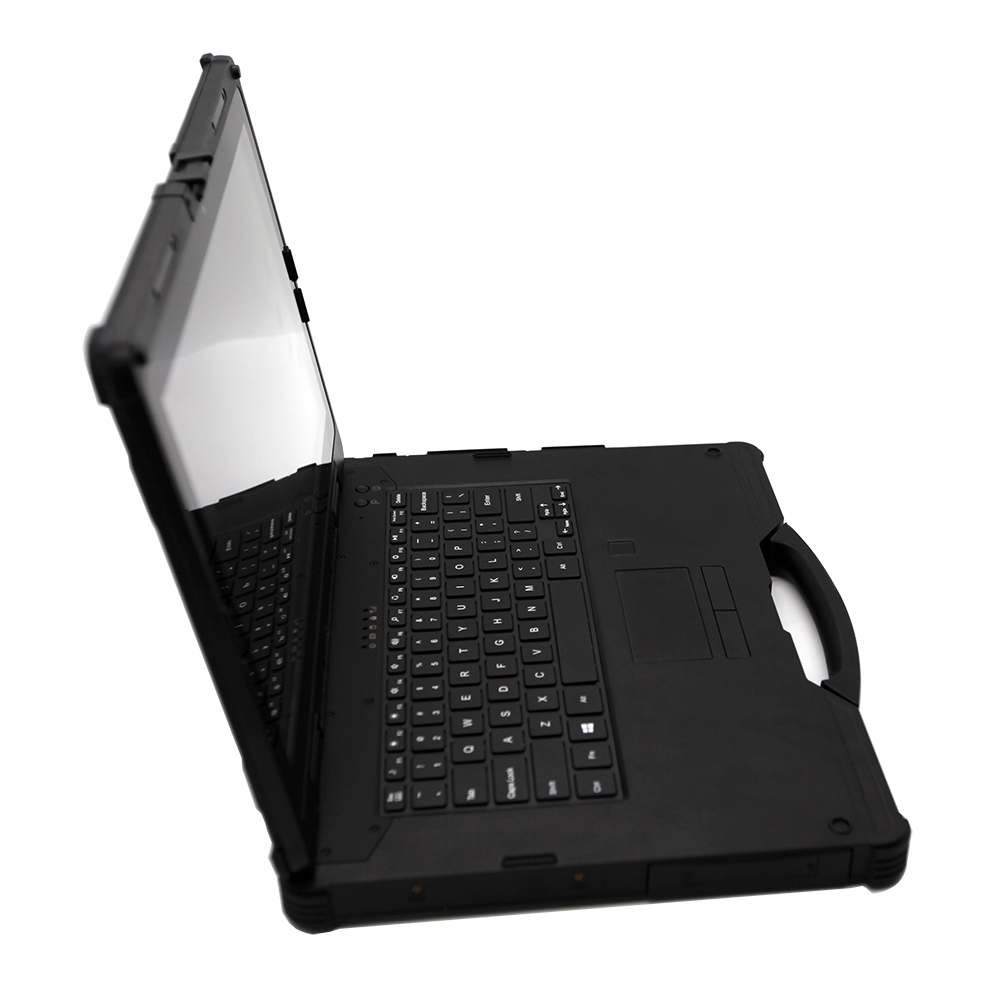

15.6 inch Ruggedized portable computer with i5-8250U or i7-8550U CPU

15.6 inch Ruggedized portable computer with i5-8250U or i7-8550U CPU

Model NO. RPC-1506

Customization OEM accepted

Datasheet (PDF) [4] Images

Portable Computer

Ruggedized Computer

Ruggedized Portable Computer

RPC-1506/ RPC-1406 is Ruggedized portable computer with 15.6" /14" widescreen 1080p lcd, i5- 8250U/i7-8550U CPU, 8GB DDR4L, 256GB SSD, HDMI,2 GbE LAN, USB3.0,WIFI,BT4.2,RS232, Audio, 8050mA/H, 65W Power Adapter

Features

15.6" Rugged portable computer compliant IP65 proof
Portable folding design, with handle
Onboard Intel Core i5-8250U/i7-8550U, 3.4G, 6MB Cache
Onboard 8GB 2666MH DDR4L memory, 256GB SSD
15.6" high-brightness LCD 1080P display
Two GbE LAN, support dual-band WF, BT4.2, optional 4G
Built-in two speakers, MIC, Line out
Integrated with keyboard, key-pad
Built-in 8050mAH polymer battery, supports long battery life
Support HDMI, USB3.0/USB2.0, COM interface

Specifications

Motherboard

CPU Intel Core i5-8250U/i7-8550U, 3.4G, 6MB Cache
System memory 8GB 2666MH DDR4L memory
Storage 256GB M.2 SSD

Display

Display chip Built-in Intel UHD Graphics 620 Chip
Interface a standard HDMI Type A
Display Size 15.6" lcd [16:9]
Resountion 1080P, 1920x 1080, FHD
Luminance 700cd/m2
Camera Front 2.0MP Camera

Audio

Speaker Built-in two 1W speakers
Micphone Built-in two microphones
Line out One 3.5mm headphone jack

Network

Wired network Two RJ45 Gigabit Lan ports
WIFI wireless
Dual-band WIFI, support 802.11a/b/g/n/ac
4G network
Optional one 4GLTE full Netcom module
BLT Bluetooth Support BlueTooth4.2 (BLT) class1

I/O and other

TPM Support TPM2.0 based on SLB9665T chip
Fingerprint One fingerprint lock support system login, SPI interface
USB Three USB3.0, one USB2.0 interface.
Serial port One RS232 serial port, DB9 connector
LED Power status/battery status/HDD/4G LED indicators
Button One power switch, One reset button

Power supply

Power interface One DC-JACK power interface, support 19V DC input
Power adapter 19V/3.42A [ 65W] Adapter
AC input Support 100V ~ 240VAC series voltage input
Battery Type Built-in polymer lithium-ion battery,
Battery capacity
8050mAH/7.4V, About 9 hours battery life

Mechanical and Environmental

Operate Temperature -20°C ~ 60°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
IP Level IP65
Dimensions (D x W x H) 397x271x37mm
Weight 3.1 kg

Ordering informations

RPC-1506 15.6" Ruggedized portable computer, i5- 8250U CPU, 8GB DDR4L, 256GB SSD, HDMI,2 GbE LAN, USB3.0,WIFI,BT4.2,RS232, Audio, 8050mA/H, 65W Power Adapter
