RPC-810

RPC-810

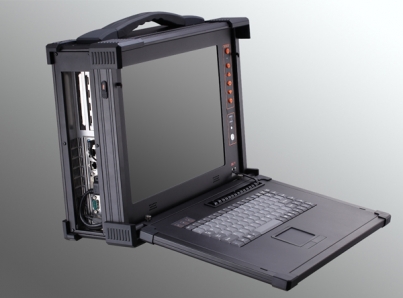

15 inch Ruggedized Portable PC

Customization OEM accepted

Datasheet (PDF) [1] Images

Ruggedized PC
Ruggedized PC

Features
  • Downward Portable Industrial Computer
  • Aluminum Alloy Chassis
  • Offers 10x Full-Size Expansion Slots
  • 15"High Brightness TFT LCD, Resolution 1024X768
  • Integrated with ultra-slim DVD-RW, 88keys keyboard, Touchpad
  • Support 1x 3.5" HDD, 1x 2.5"HDD
  • WIFI Optional
Specifications
  Configuration OneConfiguration Two
MotherboardMINI-ITXINTEL 965GME ChipsetINTEL 945GSE Chipset
Expansion Slots2x Full-Size Expansion Slots
Host ConfigurationCPUINTEL CORE 2 DUO T7300 2.OGINTEL ATOM N270
RAM2G DDRII 667 Max 4GB1G DDRII 667 Max 4GB
HDD250G SATA 2.5"250G SATA 2.5"
LCDSize15"TFT LCD With protection glass
Resolution1024x768
Brightness250cd/m2
View Angle130/120(H/V)
Input DeviceKeyboard88 keys ultra-slim keyboard
TouchpadYes
Ports2x COM,4x USB Ports,1x VGA Port,1x DVI,1x LAN
Disk DriverCD-ROMUltra-slim DVD-RW
HDDSupport 2x 2.5" HDD
Speaker2x speakersKVAR:2W ;Volume adjustable
PowerInputDC 19V
OutputATX 90W
Battery110WHr16.8V 6600mAH
Physics
Characteristics		Demiension425x38x156(mm)
Weight11Kg
Function OptionalWireless Function2.4G WLAN Card Aerial Optional
Touch PanelTouch Panel Optional
Wide Temperature20°C Operating Product Optional
ApprovalFCC CE
Ordering informations
RPC-810-C15"TFT LCD/CORE 2    T7300/DDRII 2G/250G HDD/Keyboard/Touchpad/19V DC 90W
RPC-810-A15"TFT LCD/ATOM    N270/DDRII 1G/250G HDD/Keyboard/Touchpad/19V DC 90W
