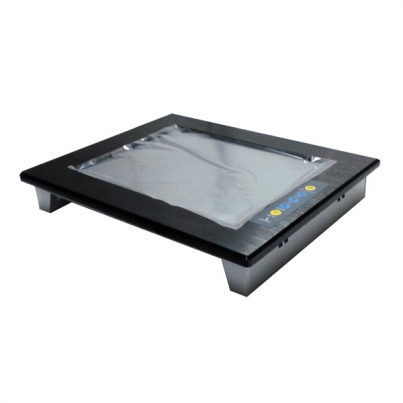

  3. 10.4 inch Touch Screen Monitor IDM-10V

10.4 Inch Touch Screen Monitor

10.4 inch Touch Screen Monitor IDM-10V

Place of Origin: China
OEM/ODM accepted

Datasheet [3] Images

10.4 inches Industrial Touch Screen Monitor

Features

  • 10.4" TFT LCD Panel support 800x600 pixels
  • Material: Aluminum magnesium Alloy
  • Rugged construction design
  • Input signal : VGA/AV
  • 350 cd/m2 brightness
  • Resistive type of touchscreen
  • NEMA4/IP65 compliant front panel
  • Panel mounting with clip
  • Meet standard VESA hole , support desktop stand / wall mount / swing arm mounting

Specifications

Display

Size 10.4"TFT LCD
Resolution 800x600
Color 262K
Backlight 2xCCFL
Luminance 350 cd/m2
Contrast Ratio 250:1
View Angle 120°(H) , 110°(V)
LCD MTBF 50,000hrs

System

Construction Aluminum magnesium Alloy
Color Black
I/O DC input/VGA/AV/USB(COM optional)
Installation Install on desk,Hanging on the wall or VESA cantilever install
Power Supply DC12V input

Touchscreen

Type Resistive Touchscreen
Resolution 4096*4096
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 81% or more
Operating Force ¡Ü250g
Life Expectancy 10 Millions

Environmental

Operate Temperature 0 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
IP Leve (Front Panel) IP65
Safety FCC/VDE(Level A)
MBTF >50,000hrs

Packing info

Dimensions(WxHxD) 294x234x45mm
Packing Dimension 406x340x140mm
NET weight 3KG

Ordering Information:

IDM-10V Industrial monitor with 10.4" TFT LCD, 10.4" touch screen,VGA
