10 Inch Touch Panel Display

10 inch touch panel display IDM-10

Place of Origin: China
OEM/ODM accepted

Datasheet Diagram [6] Images

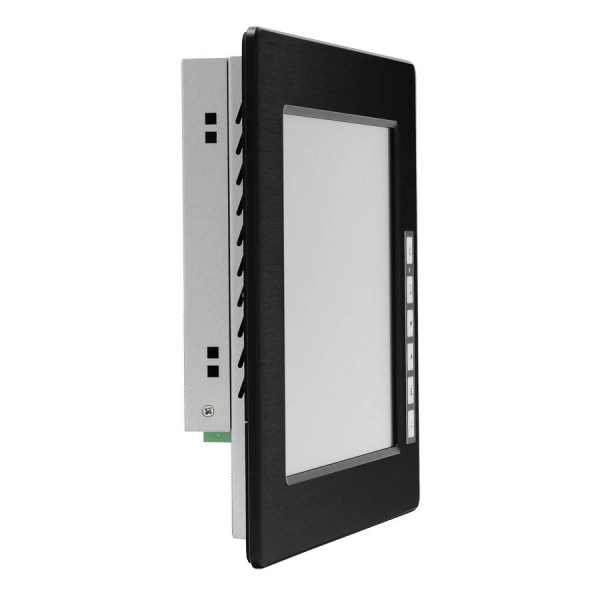

IDM-10 - 10 inch touch panel display. 10.4 inch LCD 1024x768 panel industrial touch screen monitor.

Features
  • 10.4" XGA TFT LCD Panel support 800 x 600/ 1024 x 768 pixels,400 cd/m2 brightness
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • VGA + HDMI or DVI + Audio Input signal
  • 2 x stereo speakers is optional for industrial automation system voice output
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100 mm) supports desktop stand / wall mount/ swing arm mount
  • Application for HMI, Automation system,, M2M, Control device, Heavy Manufacturing Equipment(CNC, machine tool etc.)
Specifications
Display
  • Display Type 10.4" XGA TFT LCD(LED backlight)
  • Resolution 800 x 600/ 1024 x 768
  • Max.color 16.2M
  • Luminance 400 cd/m2
  • View Angle 160°(H) , 140°(V)
  • Pixel Pitch 0.264 x 0.264 mm
  • Contrast Ratio 500:1
  • Response Time 40 ms
  • LCD MTBF 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input DC Jack (2.1mm)
  • Video Input (option) No
  • S-Video signal (option) No
  • DVI-D Signal DVI-D input 24pin connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive Type with USB and RS232 controller
  • DC Power Input Wide Range 8~30v DC input
  • AV input No
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 300 x 230 x 38 mm
  • Weight Net: 3.5kg , Gross:5.0 kg
Ordering informations
  • IDM-10 10.4" LCD Industrial Panel Mount display with VGA + HDMI or DVI + Audio Input
  • IDM-10TC 10.4" LCD Industrial Panel display with VGA + HDMI or DVI + Audio Input, with touch screen and RS232 controller
  • IDM-10TU 10.4" Industrial display with VGA + HDMI or DVI + Audio Input, with touch screen and USB controller
