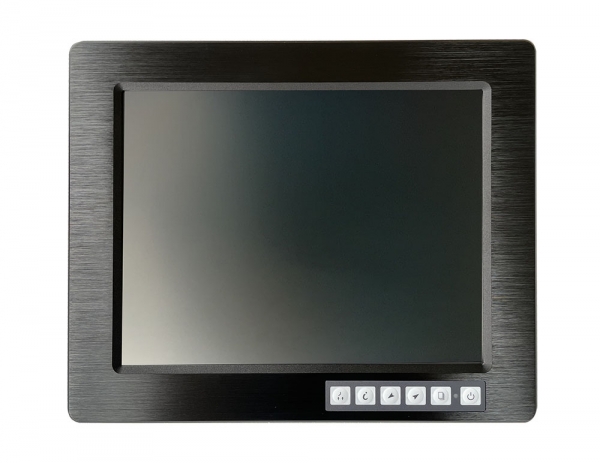

12" industrial panel monitor

IDM-12 - 12" industrial panel monitor. 12.1 inches touch screen lcd industrial panel monitor.

Features
  • 12.1" XGA TFT LCD Panel support 1024x768/800x600 pixels
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • HDMI/DVI + VGA + Audio Input signal(AV Optional)
  • 2 x stereo speakers for industrial automation system voice output
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel ( Flush ) mount with bracket or standard VESA hole (100x100mm) supports desktop stand / wall mount/ swing arm mount
  • Application for Automation control, M2M, Heavy Manufacturing Equipment,CNC, machine tool,HMI, Kiosk etc.
Specifications
Display
  • Display Type 12.1" SXGA TFT LCD
  • Resolution 1024 x 768/ 800 x 600
  • Max.color 16.2M
  • Luminance 450 cd/m2
  • View Angle 140°(H) , 110°(V)
  • Pixel Pitch 0.3075 x 0.3075 mm
  • Contrast Ratio 500:1
  • Response Time 35 ms
  • LCD MTBF 50,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input DC Jack (2.1mm)
  • Video Input (option) RCA Connector
  • S-Video signal (option) S-Video (SVHS)plug
  • DVI-D Signal DVI-D input 24pin connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive Type with USB and RS232 controller
  • DC Power Input Wide Range 8~30v DC input
  • AV input Composite Video/Audio, S-Video Input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 8 ~ 30v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 320 x 258.5 x 42 mm
  • Weight Net: 4.5kg , Gross:6.0 kg
Ordering informations
  • IDM-12 12.1" Industrial LCD Panel Monitor with VGA + DVI/ HDMI + Audio Input
  • IDM-12TC 12.1" LCD Industrial Panel Monitor with VGA + HDMI/ DVI + Audio Input, with touch screen and RS232 controller
  • IDM-12TU 12.1" Industrial Panel Mount Monitor with VGA + DVI/ HDMI + Audio Input, with touch screen and USB controller
  • IDM-12A 12.1" Industrial LCD Monitor with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input
  • IDM-12ATC 12.1" Industrial Panel Mount Monitor with VGA + DVI/ HDMI + Audio + S-Video + Video Input or BNC input, with touch screen and RS232 controller
  • IDM-12ATU 12.1" Industrial Monitor with VGA + HDMI/ DVI + Audio + S-Video + Video Input or BNC input, with touch screen and USB controller

12 Inch Industrial Panel Monitor

12" industrial panel monitor IDM-12

» 12.1 inches touch screen lcd industrial panel monitor


Place of Origin: China
OEM/ODM accepted
