12" panel pc

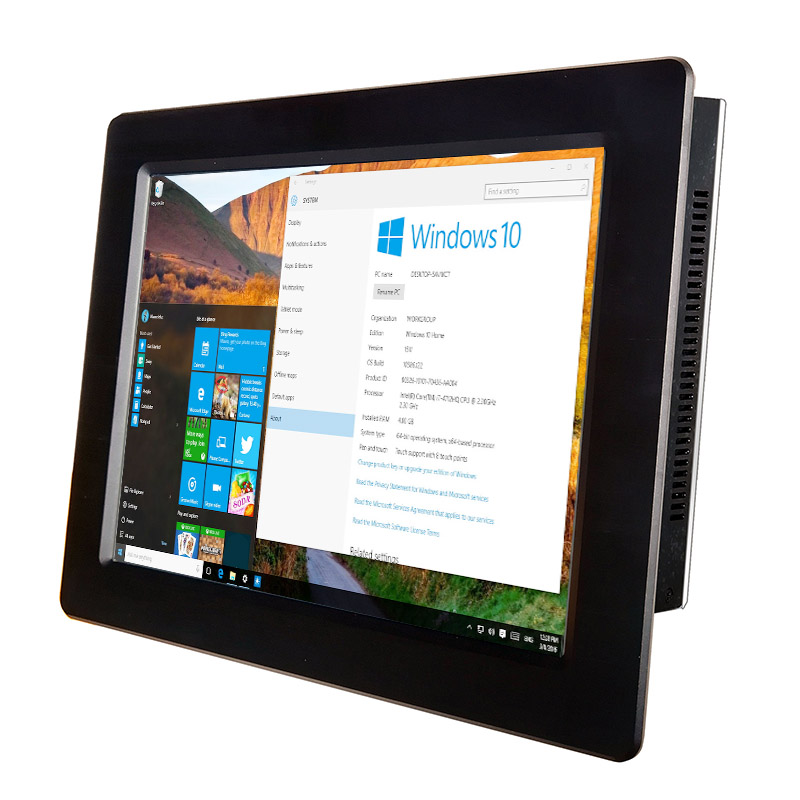

IPC-12DF - 12" panel pc. 12 inch industrial panel pc.

IPC-12DF is an industrial grade Panel PC with resistive touch screen, Alunimum panel with Ip65 rate. It's supports Win7/Win8/Win10, Linux andideal for applications in Industrial Automation, Healthcare, Finance/Banking, Education, Gaming/Entertainment, Home Automation, Retail, and Transportation.

Features
  • 12.1" XGA TFT LCD Panel support 1024x768 pixels
  • 5mm Aluminum front bezel with resitive touch screen
  • Intel Celeron J1900 Quad Core 2.0G CPU
  • Supports Windows XP, Win7/Win8/Win10, Linux
  • 2*COM , 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC
  • 1* Mini PCIe slot for wifi optional
  • Standard DC 12V input (optional Wide range DC 9-36V input)
  • Panel ( Flush ) mount with clips
  • Standard VESA 100mm hole support stand , wall mount and swing arm
Specifications
System
  • Processor Intel Celeron J1900
  • Chipset Intel Bay trail SOC
  • Memory DDR3 4G RAM (Max 8G)
  • Storage SSD 128G(HDD/SSD size optional)
  • Ethernet 2 x 100/1000 LAN ports
  • Video 1 x VGA, 1x HDMI
  • Audio 1x Mic-in / Line-out
  • USB Port 3 x USB 2.0, 1x USB3.0
  • Serial Port 2 x RS-232
  • Power switch 1 x power switch
  • Expansive Slot 1 x Mini PCIe
  • Power supply DC12V input (Optional 9-36V), 100~240V AC , 50/60Hz, external ac adapter
  • Construction Front aluminum bezel(5 mm) and steel chassis
LCD display
  • Display Type 12.1" XGA TFT LCD(LED backlight)
  • Resolution 1024 x 768
  • Max.color 16.2M
  • Luminance 400 cd/m2
  • View Angle 150°(H) , 135°(V)
  • Pixel Pitch 0.297 x 0.297 mm
  • Contrast Ratio 300:1
  • Response Time 8 ms
  • LCD MTBF 50, 000hrs
Available Options
  • Touch screen Resistive type touch screen
  • Wireless LAN Meet IEEE802.11b/g standard(WiFI)
  • DC Power Input Wide Range 9~36v DC input
Environmental
  • Operate temperature -20°C~ 60°C (-4~140°F)
  • Storage temperature -30°C ~ 80°C (-22 ~ 176°F)
  • Storage humidity 5% to 95% @40°C non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Power supply
  • Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
  • Output DC12V, output 32W
Packing info
  • Dimensions (WxHxD) 315 x 250 x 49mm
  • Weight Net: 4.6kg , Gross:6.8 kg
Ordering informations
  • IPC-12DF 12.1"es industrial panel PC, with Intel J1900 Processor, 4G RAM, 128G SSD, 2*COM, 1x HDMI, 1xVGA, 4xUSB(1 usb 3.0), 2xLAN, 1x Audio, MIC, Resistive Touch Screen
  • IPC-12DFL IPC-12DF + Mini-PCIE wireless Lan card with antenna

12 Inch Panel Pc

12" panel pc IPC-12DF

» 12 inch industrial panel pc


Place of Origin: China
OEM/ODM accepted
