23.6 Inch Industrial Monitor

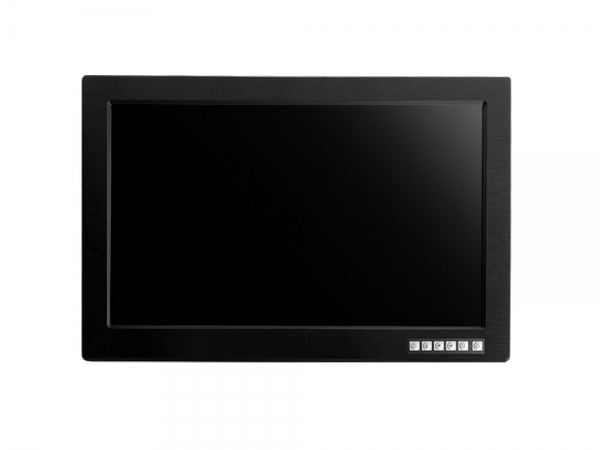

23.6 inch industrial monitor IDM-236W

Place of Origin: China
OEM/ODM accepted

Datasheet [2] Images

IDM-236W - 23.6 inch industrial monitor. 23.6 inch industrial lcd monitor with touch panel option.

Features
  • 23.6" FULL HD widescreen Panel support 1920x1080 pixels, 400 cd/m2 brightness
  • 6mm Aluminum bezel panel with touch screen/strengthen glass
  • Rugged construction and modularized design
  • VGA + DVI + Audio Input signal(AV Optional)
  • 2 x stereo speakers for industrial automation system voice output
  • OSD control keys to optimize the display
  • AC 100-240V wide range external ac adapter
  • NEMA4 / IP 65 compliant front panel
  • Panel (Flush) mount with bracket and standard VESA hole (100x100mm) for mounting
Specifications
Display
  • Display Type 23.6" LED FULL HD TFT LCD
  • Resolution 1920x1080
  • Max.color 16.7M
  • Luminance 250 cd/m2
  • View Angle 178°(H) , 178°(V)
  • Pixel Pitch 0.2715 x 0.2715 mm
  • Contrast Ratio 1000:1
  • Response Time 15 ms
  • Backlight Life 40,000hrs
Input Signals
  • RGB Signal D-SUB 15P Connector (female)
  • DC input 2-Pin Terminal Block
  • HDMI Signal HDMI connector (female)
  • Touch screen RS232 (option) D-SUB 9p connector (female)
  • Touch screen USB (option) USB-A type connector (female)
Available Options
  • Touch screen Resistive type touch screen with USB  controller
  • DC Power Input Wide Range 9~36v DC input
Power supply
  • Standard 100~240VAC,50/60Hz, DC12V@  5A / 60W ,external ac adapter
  • DC-DC Power DC 9 ~ 36v input power module(optional)
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature 0 °C to 50 °C
  • Storage temperature -20 °C to 60 °C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Packing info
  • Dimensions (WxHxD) 605 x 380 x 47 mm
  • Weight Net: 8.0kg , Gross:10.5 kg
Ordering informations
  • IDM-236W 23.6" Industrial LCD Panel Monitor with VGA + HDMI + Audio input
  • IDM-236WT 23.6" Industrial LCD Panel Monitor with VGA + HDMI + Audio input, resistive touchscreen
