Box pc

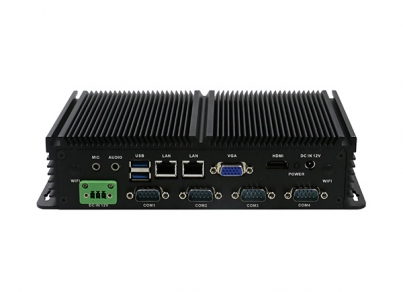

MPC-6600J - Box pc. Fanless Mini box PC with with Intel J1900 Processor 2G RAM 32G SSD.
Features
- Fanless design mini box PC
- Intel Celeron J1900 Quad Core 2.0G CPU
- 3.5 inch Embedded Motherboard
- 6 x COM (2 x COM support RS422/485), 1 x usb3.0, 5 x usb2.0, 1 x HDMI, 1 x VGA, 2 x GbE LAN
- 2 x Mini-PCIE , 1 x SIM slot, support WiFi/3G and MSATA
- Standard 12V DC input;
- Support Windows7/8/10, Linux.
Specifications
| Material | Aluminum Alloy | |
| CPU | Intel Baytrail quad core J1900(22nm,2.0GHz,2MB second Cache) | |
| Chipset | Intel express chipset | |
| RAM | 1*SODDR3 (can up to 8G) | |
| Storage | 1*MINISATA, 2*SATA (32G/64G/128G/256G SSD or 500G/1T HDD is optional) | |
| Display Interface | 1*VGA, 1*HDMI | |
| Display | Integrated Intel HD Graphic card, support VGA,HDMI LVDS display input? | |
| I/O | USB | 1*USB 3.0, 5* USB 2.0 |
| COM | 6*COM (2*COM support RS422/485) | |
| Line In/Out | 1 | |
| WIFI Antenna | 2 | |
| GPIO | 1 | |
| SIM Slot | 1 | |
| Network Card | 2*Intel WGI211AT 1000M Lan, support wake on lan? | |
| Expansion | 2*mini-PCIE, 1*SIM slot, support Wifi/3G and MSATA | |
| Watch Dog Timer | Support | |
| Power Supply | DC_12V | |
| Operating System | Windows 7/8/10, Linux | |
| BIOS | 64MB SMT Flash ROM | |
| Working Temperature | -20°C - 60°C | |
| Working Humidity | 0% - 95% relative humidity, Non-condensing | |
| Dimenstions | 214*122*54 mm (W*D*H) | |
| Weight | 2.5kg | |
Ordering informations
| MPC-6600J | Fanless design mini box PC, with Intel J1900 Processor, 2G RAM, 32GSSD,12V DC power |
