Fanless industrial computer

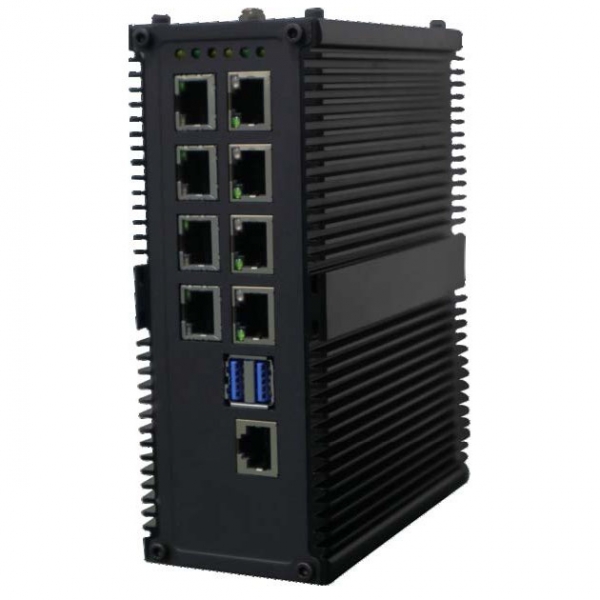

IFW64802 - Fanless industrial computer. Wide temperature fanless industrial computer with Intel X6413E processor and 8 LAN ports.

Din rail mount, wide-temperature, Industrial computer network application appliance, high realtabilty, small size support DIN-RAIL rail type installation. Onboard Intel® X6413E processor, 4x 2.5G and 4x 1G RJ45 network ports with three channels LAN bypass, 9~36V DC in.

  • Onbaord Intel® Celeron quad-core X6413E processor, 1.91GHz, 2MB cache
  • One 260pin 3200MHz DDR4 SO-DIMM RAM, max 32GB RAM
  • 4x 2.5 Gigabit RJ45 + 4x 1G RJ45 Ethernet ports, supports three channels LAN BYPASS
  • One RJ-45 Console interface, one RS-232 Console interface
  • Two USB3.0, mSATA storage
  • Two 9~36VDC wide voltage DC inputs, with alarm for power failure
  • Multi-function LED indicators
  • Fanless thermally conductive aluminum extrusion to support wide temperature working
  • Support DIN-RAIL rail type mount
  • Widely used in industrial-application environments
  • CPU   Intel Celeron Quad-core X6413E processor, 1.8GHz, 1.5MB cache
  • System memory   One 260pin DDR4 3200MHz SO-DIMM slot, Max 32GB RAM
  • Interface   One mSATA Interface
  • SSD   MAX 512G SSD
  • CF slot   None
  • LAN Ports 2.5G Four 2.5G RJ45 network interfaces, Intel® Ethernet Controller I225-V
  • LAN Ports 1G Four 1G ethernet ports, RJ45 interface, Intel i350 ethernet Controller
  • BYPASS Support three channels Gen3.0 LAN BYPASS
  • Indicator With LAN link, active, speed LED, built-in BYPASS status LED
External I/O
  • USB Two USB3.0
  • Console One RJ-45 console port
  • Display One HDMI interface
  • COM One Rs232 COM RJ-45 interface
  • Indicator One Power LED, one HDD LED, one definedable LED
  • Reset Button One built-in reset button
  • Watchdog 1~255 seconds programmable software watchdog, support system reset
Power supply
  • Power consumption 60W power adapter
  • Power input Dual 9 ~ 36V wide range DC input
  • Mounting Support DIN-RAIL rail type mount
  • Operate Temperature -40°C ~ 70°C
  • Storage Temperature -50°C ~ 85°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
  • Chassis Color Black
  • Front panel Front panel silk-screen [Customized LOGO optional]
  • Construction Aluminum extrusion chassis
  • Dimensions (D x W x H) 158.1x122x60.8 mm
  • Weight 3.0 kg
Ordering informations
  • IFW64802 Industrial computer, network applicaiton appliance, Din rail mount, Aluminum extrusion chassis, Intel X6413E CPU, 4 x 2.5G RJ45, 4x 1G RJ45, three lan bypass, 60W Power adapter

Fanless Industrial Computer

Fanless industrial computer IFW64802

» Wide temperature fanless industrial computer with Intel X6413E processor and 8 LAN ports

Place of Origin: China
OEM/ODM accepted
