Mini case pc

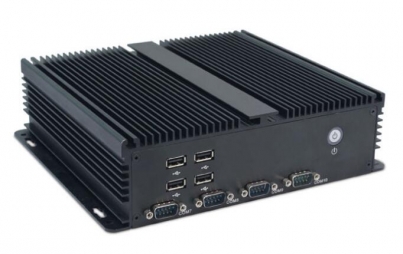

MPC-1080U - Mini case pc. Fanless mini box PC with 10 COM LVDS and VGA.
Features
- Fanless design mini box PC
- Aluminum alloy case with two mount racks
- Intel Celeron 1037U dual core 1.8GHz CPU
- 2 x VGA, 1 x HDMI, 1 x LVDS, 8 x USB2.0, 10 x COM (optional),2G Ram
- AMI 32Mbit .support RPL/PXE diskless boot, wake on lan, electricity boot, WDT
- 3 x SATA,2 x Mini-iPCIE, support wifi/3G and MSATA
- DC onboard power supply 12V and AC power adapter 12V/5A
- Support Windows7/8/10, Linux.
Specifications
| CPU | Intel Celeron 1037U Dual Core 1.8GHz | |
| Chipset | Intel NM70 | |
| RAM | 1 x SO DDR3 Memory Slot,Max 8G | |
| Display | Integrated Intel HD2500 graphics support LVDS,HDMI,VGA synchronous and asynchronous dual display | |
| Expansion | 3 x SATA,2 x MINI PCI-E,1 x MSATA,support WiFi and SSD | |
| Storage | 1 x 2.5"HDD | |
| Audio | Realtek ALC662 chip,Line-in,Line-out | |
| Network | 2 x Gigabit RTL8111E 1000M LAN,support RTL and PXE diskless boot | |
| I/O | USB 2.0 | 8 (4 x USB2.0 on the front panel) |
| COM RS232 | 10 | |
| HDMI | 1 | |
| VGA | 2 | |
| RJ45 LAN | 2 | |
| BIOS | AMI BIOS,ACPI supported electricity boot | |
| WDT | Watchdog timer 256 level,programmable | |
| Power Supply | AC110~240V To DC 12V 5A/7A power adapter | |
| Temp | Storage Temperature | -20°~80° |
| Working Temperature | -20°~60° | |
| Humidity | 10%~90% Non-condensing | |
| Dimension | 234 x 200 x 64.5MM (L x W x H) | |
| Weight | 2.5KG | |
| Packing | Each in a paper box (340 x 310 x 160MM),5 pcs per carton (710 x 350 x 310MM) | |
Ordering informations
| MPC-1080U | Fanless design mini box PC, with Intel 1037U Processor, 2G RAM, 32GSSD,12V DC power |
