Multi touch monitor

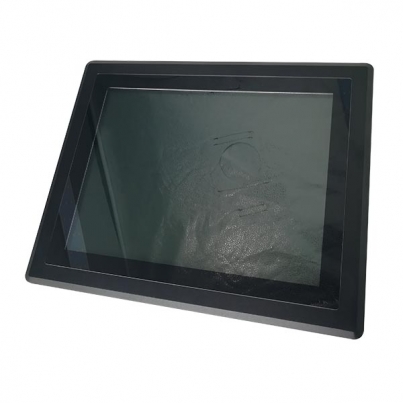

IDM-12VHT - Multi touch monitor. Capacitive touch screen multi-touch monitor with 12.1 inch LCD VGA and HDMI.

Features
  • 12.1" XGA TFT LCD Panel support 1024x768 pixels,450 cd/m2 brightness
  • 6mm rugged aluminum bezel panel and Rugged construction
  • Input signal : VGA + HDMI + AUDIO
  • Built-in 2 x stereo speakers for automation system voice output
  • OSD control keys on the side of rear panel
  • AC 100-240V wide range external ac adapter
  • 8 ~ 30V DC input power module(Optional)
  • Panel ( Flush ) mount with bracket and with standard VESA hole (100x100 mm )
  • Application for HMI, Kiosk, Automation, M2M, IOT system,Robots, shopping mall, Restaurant etc.
Specifications
Display
  • Display Type 12.1" SXGA TFT LCD
  • Resolution 1024 x 768
  • Max.color 16.7M
  • Luminance 450 cd/m2
  • View Angle 120°(H) , 100°(V)
  • Pixel Pitch 0.289x0.289 mm
  • Contrast Ratio 500:1
  • Response Time 8 ms
  • LCD MTBF 50,000hrs
System
  • Display Construction 6mm Rugged Aluminum panel with multi-touch display, OSD on the back side
  • Touch screen Capacitive touch screen(Multi touch)
  • Speakers 2 x stereo speakers
  • Input Signals VGA+HDMI+Audio
  • Power Supply Input 100~240VAC,50/60Hz external ac adapter (Output DC12V@ 5A / 60W)
  • DC-DC input(optional) 8 ~ 30V DC input power module
  • Dimensions (WxHxD) 320 x 258.5 x 45 mm
  • Weight Net: 4.8kg , Gross:6.5kg
Environmental
  • Construction Heavy duty steel and aluminum front panel
  • Operate temperature 0 °C to 50 °C
  • Storage temperature -20 °C to 60 °C
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Ordering informations
  • IDM-12VHT 12.1" LCD Industrial Multi-touch Monitor with VGA + HDMI + Audio input, with 2 x stereo speakers

Multi Touch Monitor

Multi touch monitor IDM-12VHT

» Capacitive touch screen multi-touch monitor with 12.1 inch LCD VGA and HDMI


Place of Origin: China
OEM/ODM accepted
