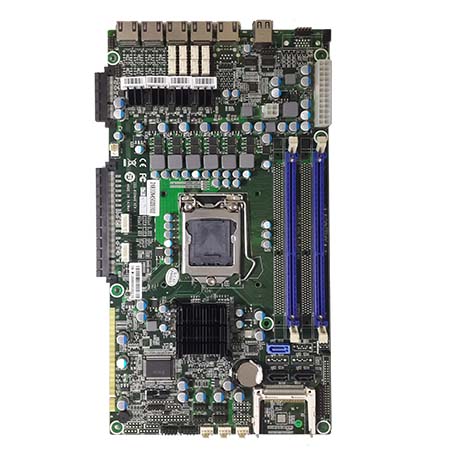

Network application motherboard based on intel C206 chipset Xeon or i3 i5 i7 Dual Quad core processor

Network Application Motherboard With Intel C206 Chipset


Place of Origin: China
OEM/ODM accepted

Datasheet Download [1] Images

Industrial Grade Network Security motherboard support 22nm/32nm LGA1155
Intel 庐 Xeon and Gen2 CoreTM i3/i5/i7 CPU, Intel 庐 C206/H61 chipset,
DDR3, VGA, 4 Intel 庐 PCIe GbE, USB2.0, SATA , CFII, CE, FCC, RoHS

Intel LGA1155 Socket supports Intel. Xeon or i3/i5/i7 Dual/Quad core processor

System Chipset: Intel. C206/H61


System Memory:
Four 240-pin 1333/1066MHZ Dual-Channel DDR3 SDRAM
Un-buffered DIMM supported (system max. 32GB)

Four Intel. W82574L PCIe GbE Ethernet controller
Support two groups BYPASS ethernet function

Graphic Engine:
VGA Integrated in the Intel. C206/H61 chipset
Support for DX10.1 and OpenGL 3.0, Full MPEG2, AVC Decode

SATA: 1 x SATA 6Gb/s, 4 x SATA 3Gb/s (C206)
3 x SATA 3Gb/s (H61)
CF: CF type II socket by Marvell 88SA8052 SATA to PATA bridge
IDE: Optional IDE by Marvell 88SA8052 SATA to PATA bridge

Optional Realtek ALC892 HD Audio codec (Line-in, Line-out, MIC)

Super I/O: ITE IT8728F

I/O Interface:
2 x RS-232

8 x USB 2.0 (2 by Front IO, 6 by pin-header)
1 x PS/2 KB/MS pin-header
1 x LPT (optional)

2 * PCIex16 Slot
1 * PCIex4 Slot

Digital I/O: 16-bit Digital I/O ( 8-bit input / 8-bit output)

TPM: 2 x 7-pin pin header

SMBUS: 1 x 6-pin wafer

Watchdog Timer:
Software programmable supports 1~255sec system reset.

FAN connector:
1 x 4 pin CPU fan connector, with smart FAN
3 x 3 pin System fan connector

Power supply: ATX power supply

Power Consumption:
3.3V@1.75A, 5V@6.61A, 12V@3.98A, 5VSb@0.12A
(Intel. 3.1GHz CPU with 1333MHz DDR3 4GB x 4 memory)

Operating Temperature: -10 ~ 60 °C

Operating Humidity: 5%~95% non-condensing

Dimensions: 330x175mm

Weight: NW:670g
