  3. Rackmount PC RCWS-08N

Rackmount Pc

Rackmount PC RCWS-08N

Place of Origin: China
OEM/ODM accepted

Datasheet Diagram [4] Images

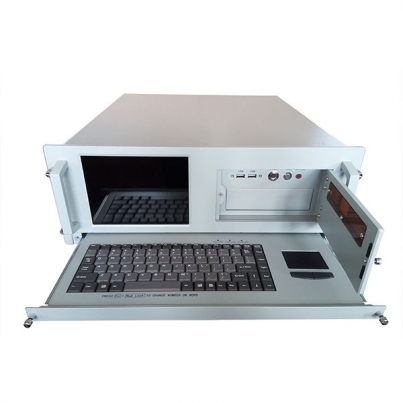

Rackmount 8 inches LCD All In One PC Chassis Workstation

Features

  • 4U heightIndustrial computer Rackmount workstation
  • Support 14-slot PCI/ISA Backplane or Micro-ATX MB foam factor
  • 8"  SVGA TFT LCD display Support 1024x768 pixels,250 cd/m2 brightness
  • Built-in keyboard and Touchpad drawer
  • Shock-resistant drive bays to hold 1x 5.25" and 2x 3.5" drives
  • Signal input VGA and DVI interface
  • 2xUSB Accessible from the front door
  • Support PS2 and redundant power supply
  • Power & HDD status indicator by front viewable LED indicator
  • Aluminium  front panel, Heavy duty steel chassis

Specifications

System

Construction Compact 19" 4u Rackmount Heavy-Duty Steel Chassis
Disk Driver Bay  5.25" x1 , 3.5" x2
Cooling Fan 2x  cooling fan, with air filter and    Moistureproof design
Keyboard Built-in full-function keyboard and touch pad.
OSD OSD function in front panel
I/O Connector Front panel: 2xUSB2.0
Rear panel: DVI, VGA, USB, PS/2(Optional)
LED indicators & Switch  Power LED indicator(Green), HDD LED indicator(Red), Power    Switch and reset
Color White

LCD display

Display type 8" XGA TFT LCD
Resolution 1024x768
Colors 16.7M

Backlight LED
Luminance 250 cd/m2
Contrast Ratio 700:1
View angle 110°(H) , 120°(V)

LCD MBTF 50,000hrs

Touchscreen(Optional)

Type Resistive Touch Screen
Resolution continuous
Controller Interface Internal USB ( RS-232 interface option)
Light Transmission 80% or more
Operating Force 250g

Environmental

Oprerating Tempreture 0 °C to 60 °C
Storage Humidity 5% to 95%@ 40°C    , on-condensing
Vibration 5-17Hz/1mm amplitude, 17-640Hz/1.5g acceleration
Shock 10G peak acceleration (11 msec. duration)
Safty FCC/VDE(Level A)

Packing info

Dimensions(WxHxD) 386mm x 141.6mm x 376 mm
Packing Dimension 590x390x550mm
NET weight 16 KG

Ordering Information:

RCWS-08N 4U rackmount chassis, 8"TFT LCD, for motherboard rear panel
RCWS-08NT 4U rackmount chassis, 8"TFT LCD, touchscreen, for motherboard rear panel
