Touch panel pc

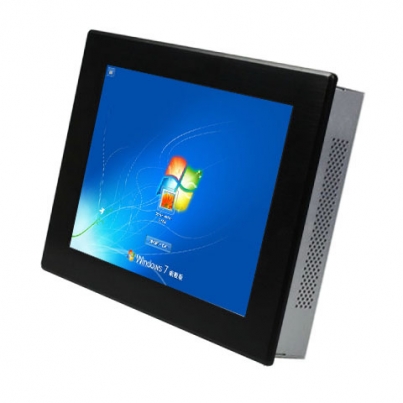

IPC-12D - Touch panel pc. 12.1 inch LCD panel 1024x768 industrial touch screen PC.

Features
  • 12.1" XGA TFT LCD Panel support 1024x768 pixels
  • Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU with 667 MHz FSB
  • Front 6mm aluminum bezel with IP65 compliant
  • Front hardness glass protect screen ( touch option )
  • 4* COM, 1* LPT, 2 * PS/2, 1 * VGA, 4 * USB, 2* GLAN, 1* AUDIO, 1* MIC
  • 1* Mini PCIe slot
  • Wireless LAN with antenna (option)
  • Panel ( Flush ) mount with clips
  • Standard VESA 75mm support stand , wall mount and swing arm mounting
Specifications
System
  • Processor Intel Atom D525 ( Dual-core 1.8GHz processor ) CPU
    with 667 MHz FSB
  • Chipset Intel NM10
  • Memory DDR3 2G RAM
  • Dispay Intel GMA3150 chipset
  • Storage 2.5" HDD SATA 320G
  • Ethernet 2 x 100/1000 LAN ports
  • VGA port 1 x VGA Connector
  • KB & Mouse 1 x PS2 port
  • Audio Realtek ALC662, 5.1 channel surround audio
  • USB Port 4 x USB 2.0
  • Serial Port 4 x RS-232, COM2, RS232/RS422/RS485
  • Power switch 1 x power switch
  • Expansive Slot 1 x Mini PCIe
  • Power supply 1 x DC input connector
  • Construction Front aluminum bezel and steel chassis
LCD display
  • Display Type 12.1" XGA TFT LCD
  • Resolution 1024 x 768
  • Max.color 16.2M
  • Luminance 500 cd/m2
  • View Angle 150°(H) , 135°(V)
  • Pixel Pitch 0.297 x 0.297 mm
  • Contrast Ratio 700:1
  • Response Time 8 ms
  • LCD MTBF 50, 000hrs
Available Options
  • Touch screen Resistive type touch screen
  • Wireless LAN Meet IEEE802.11b/g standard
  • DC Power Input Wide Range 8~28v DC input
Power supply
  • Input 100~240VAC , 50/60Hz
  • Output DC12V@ 10A / 120W , external ac adapter with lockable connector
Environmental
  • Operate temperature 32°F~113°F (0°C to 45°C )
  • Storage temperature -4°F~140°F (-20°C  to 60°C )
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
  • Approvals CE/ROHS
Packing info
  • Dimensions (WxHxD) 322X247.5X71 mm
  • Weight Net: 4.9kg , Gross:7.0 kg
Ordering informations
  • IPC-12D 12.1" industrial panel PC with Intel Atom D525    Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD
  • IPC-12DT 12.1" industrial touch screen PC with Intel Atom D525    Dual-core 1.8GHz Processor, 2G RAM, 2.5" 320G HDD, with Resistive Touch    Screen

Touch Panel Pc

Touch panel PC IPC-12D

» 12.1 inch LCD panel 1024x768 industrial touch screen PC


Place of Origin: China
OEM/ODM accepted
