Touch screen computer

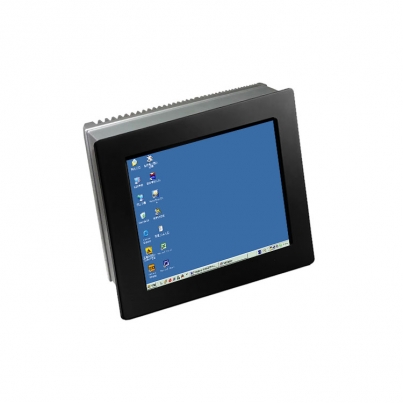

IPC-10FL - Touch screen computer. 10.4 inch Atom N2800 Fanless Panel PC with touch screen.
Features
- Low power consumption and fanless design
- 10.4" TFT SVGA LED Panel (800 x 600) with resistive touch screen
- Embedded Intel® Atom™ processor N2800 1.86 GHz
- System memory up to 4 GB SODIMM DDR3 800/1066/1333 SDRAM
- 3COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x Audio
- Offers 2 x Mini PCIe slot, for expansion
- Rear panel with power LED and HDD LED Indication
- Wireless LAN with antenna (optional)
- Robust aluminum with IP65 compliant front bezel design
- Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm
Specifications
Main System
- CPU Onboard Intel Atom N2800 1.86GHz Dual-core CPU with 667 MHz FSB
- Chipset Intel NM10 chipset
- System Memory 1x SODIMM DDR3 800/1066/1333 SDRAM up to 4 GB, preload 2GB Ram
- HDD (hard disk ) 2.5" SATA HDD; Preload 320GB HDD or 32G SSD
- LAN Two LAN onboard: 2x Realtek® RL8111x (Gigabit ) 10/100/1000Ethernet
- Graphic Intel GMA3650 chipset
- Audio Realtek® ALC662, 5.1 channel surround Audio
- I/O Connector 2 x RS-232
1 x RS-232/RS422/485
1 x HDMI
1x DB-15 Connector
1x Audio (Mic-in / Line-out)
2x 10/100/1000MLAN port ( RJ-45 )
4x USB2.0
1x 3Pin DC power input terminal block - Expansion Mini PCIe slot
General
- Construction Aluminum front bezel and Aluminum chassis
- OS Support Windows 10/8/7, Windows XP, Linux
- Mounting Panel mount or Standard VESA 75/100mm
- Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating 30W
LCD display
- Display type 10.4" SVGA TFT LCD LED Backlight
- Resolution 800 x 600 pixels
- Luminance 250 cd/m2
- Viewing angle 160°(H) , 160°(V)
Touchscreen
- Type Analog Resistive 5-wire
- Controller Interface Internal USB interface controller
- Resolution Continuous
- Light Transmission 81% or more
- Operating Force ≤100g
- Life Expectancy 35 Million
Environmental
- Operate Temperature 0 ~ 45°C (32 ~ 113°F)
- Storage Temperature -20 ~ 60°C (-4 ~ 140°F)
- Humidity 10% to 90%@ 40°C , on-condensing
- Vibration 17 to 500HZ 1G PTP
- Operating Shock 1G /peak ( 11m sec)
- Ingress Protection Front panel: IP65
Packing info
- Dimensions(WxHxD) 287.4 x 227.4 x 58 mm
- NET weight 4.5 KG
Ordering informations
- IPC-10FL Fanless Panel computer with 10.4" SVGA TFT LCD, Intel Atom N2800 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional), 3x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x Audio
- IPC-10FLT Fanless Touch screen Panel computer with 10.4" SVGA TFT LCD, Intel Atom N2800 Processor, 2.5" SATA 320G HDD(or 32G SSD) , 2G RAM(4G optional), 3x COM (1XRS232/422/485), 1 x HDMI, 1xVGA, 4xUSB, 2xLAN, 1x Audio, Resistive touch screen
