1u network appliance based on C206 Chipset

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [2] Images

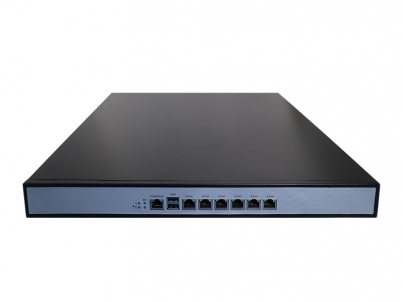

1u Network Appliance

Network Security Appliance

1U network appliance c206 chipset 6 Rj45 GbE i3 i5 i7 CPU, single or redundant power supply

Features

Supports Intel Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
Intel C206 chipset
Four 240-pin 1333/1600MHz DDR3 DIMM slots, up to 32 GB
Six Intel PCIe GbE controllers, support two channels bypass
Three SATA2.0 and one SATA3.0 interface,
One/two HDD trays supports RAID 0, 1, 5, 10
Supports USB, CF TypeII, COM

Specifications

Motherboard

CPU Support Intel Gen2/Gen3 Xeon E3-1200 or i3/i5/i7 Core processor
Chipset Intel C206
System memory Four DDR3 slots, up to 32GB

Storage

Interface Two SATA2.0 and one SATA3.0 connectors
Hard Drive Supports one 3.5/2.5" HDD tray
CF slot One CFII slot

Ethernet

LAN Port Six 10/100/1000Mbps RJ-45 ports

Ethernet Controller Six Intel PCIe GbE controllers

BYPASS Two channels BYPASS

Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED

System I/O

USB Two USB2.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion One PCIex16 and one PCIex4

Power supply

Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power

Environmental

Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing

Mechanical

Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 1u chassis, Heavy duty metal
Dimensions (D x W x H) 450x430x44.5mm
Weight 12.8 kg

Ordering informations

F20611-B2 1u rackmount chassis, Motherboard with Intel C206 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
F20611-B2P2 1u rackmount chassis, Motherboard with C206 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W redundant PSU

Optional Nic Modules

58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F4 4 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F8 8 GBE SFP LAN ports Nic module LAN card based on Intel 82580EB controllers
58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
