Xeon network appliance

F23622

Rackmount network appliance based on C236 chipset Xeon or i3 i5 i7 CPU max 22GbE

Country of Origin: China
Customization OEM accepted

CPU Optional Datasheet (PDF) [2] Images

Xeon Network Appliance
Xeon Network Appliance

Rackmount Network Appliance
Rackmount Network Appliance

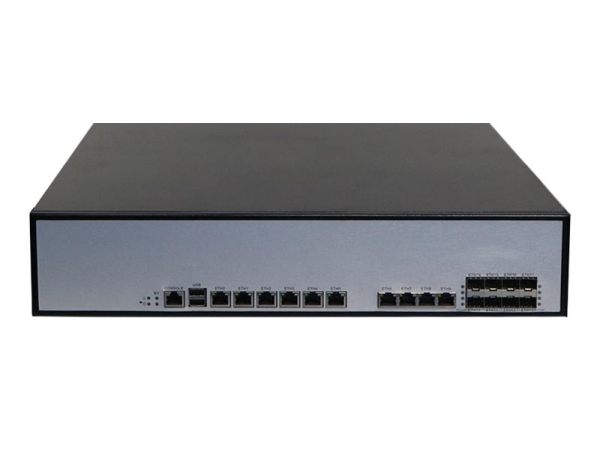

2U Rackmount network appliance with Intel C236 chipset LGA1151 soket supports Gen 7/6th i3 i5 i7 and Xeon E3-1200V5 CPU, single or redundant power supply
Features
  • Supports Skylake Intel LGA1151 Socket Gen6/Gen7 Xeon E3-1200, Gen 6th i3 i5 i7 Core, Pentium processor
  • Intel C236 chipset
  • Two dual-channel 2133/2400MHz DDR4 slots, up to32 GB
  • Six Intel PCIe GbE controllers for six network ports
  • Three SATA3.0 6Gb/s and one mSATA
  • Supports USB3.0, COM
  • Two PCIe3.0x8 slots for NIC modules
Specifications
Motherboard
CPU Supports Intel LGA1151 Socket Gen6/Gen7 Xeon E3-1200, or i3/i5/i7 Core, Pentium processor
Chipset Intel HC236
System memory Two 2133/2400MHz DDR4 slots, up to 32GB
Storage
Interface Three SATA3.0 connector and one mSATA slot
Hard Drive Supports four 3.5/2.5" HDD trays
Ethernet
LAN Port Six 10/100/1000Mbps RJ-45 ports
Ethernet Controller Six Intel PCIe GbE controllers
BYPASS 2 channels BYPASS
Indicator Indicator RJ-45 with LAN link, active, speed LED, built-in BYPASS function LED
System I/O
USB Two USB3.0
COM One RJ-45 COM
Indicator One Power LED, one HDD LED
LCM module Optional 2x16 characters LCM display module
Video Built-in one VGA interface, support hot plug(Internal)
Expansion Two PCIe3.0x8 for LAN cards and one PCIex4
Power supply
Power consumption Built-in 250W power supply
Power input 100 ~ 240V AC input
Optional DC power or Redundant power
Environmental
Mounting Supports rack-mounting or desktop-mounting
Operate Temperature -10°C ~ 50°C
Storage Temperature -20°C ~ 75°C
Operate Humidity 5% ~ 85% non-condensing @ 40°C
Storage Humidity 5% ~ 95% non-condensing
Environmental
Chassis Color Black or OEM
Front panel Silver PVC/Aluminum font panel(OEM/Neutral)
Construction 2u chassis, Heavy duty metal
Dimensions (D x W x H) 500x440x88mm
Weight 17.8 kg
Ordering informations
F23622-B2 2u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 250W PSU
F23622-B2P2 2u rackmount chassis, C236 Chipset, 6 x GbE RJ45, 2 channels bypass, 350W  redundant PSU
Optional NIC modules
58N4 4 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F4 4 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
58NF2 2 GbE RJ-45 and 2GBE SFP LAN ports NIC module Lan card based on Intel 82580EB controllers
58N8 8 GbE RJ-45 LAN ports NIC module Lan card based on Intel 82580EB controllers
58F8 8 GBE SFP LAN ports NIC module LAN card based on Intel 82580EB controllers
58B2 2 GBE SFP LAN ports NIC module Lan card based on Intel 82580DB controllers, with one channel Bypass
35NF4 4 GbE RJ-45 and 4GBE SFP LAN ports NIC module Lan card based on Intel I350 controllers
59W2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers
59B2 2 10G SFP LAN ports NIC module Lan card based on Intel 82599ES controllers, with one channel Bypass
71W4 4 10G SFP based on Intel XL710 controllers
