Din rail industrial computer

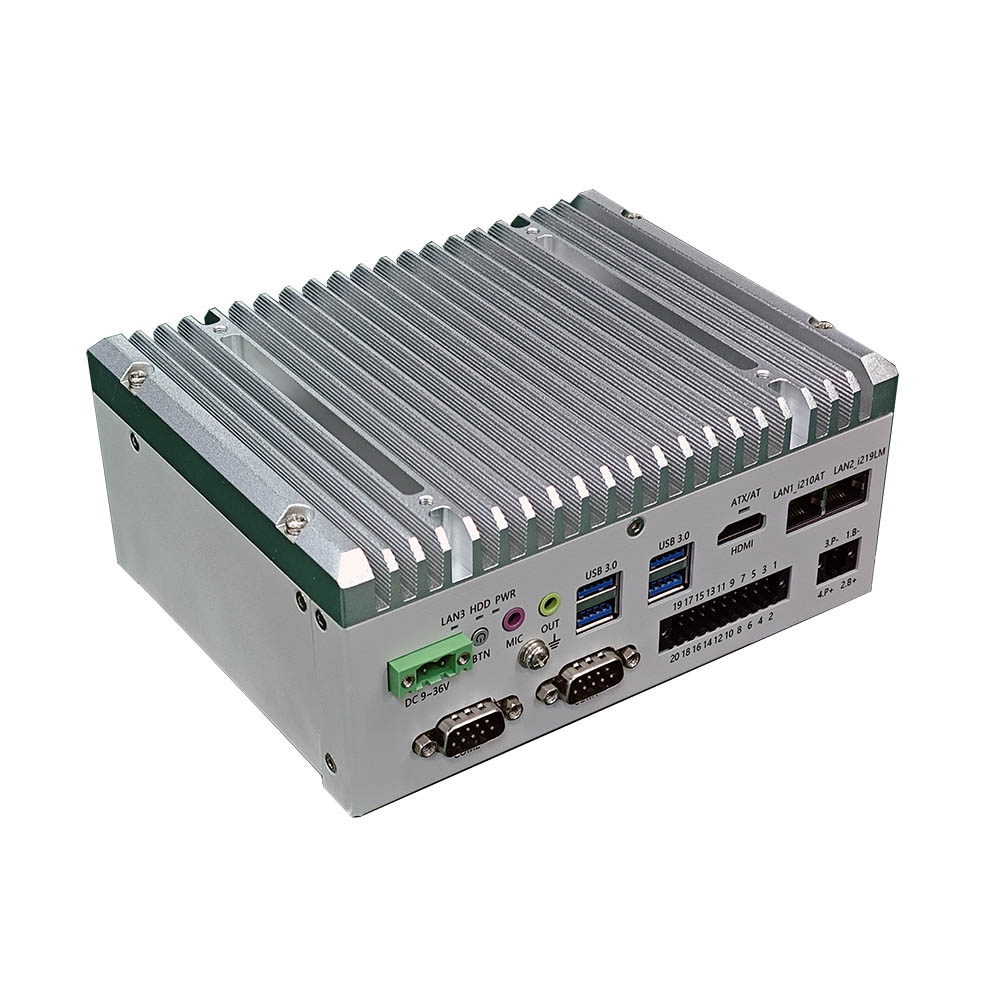

Industrial Computer With GPIO

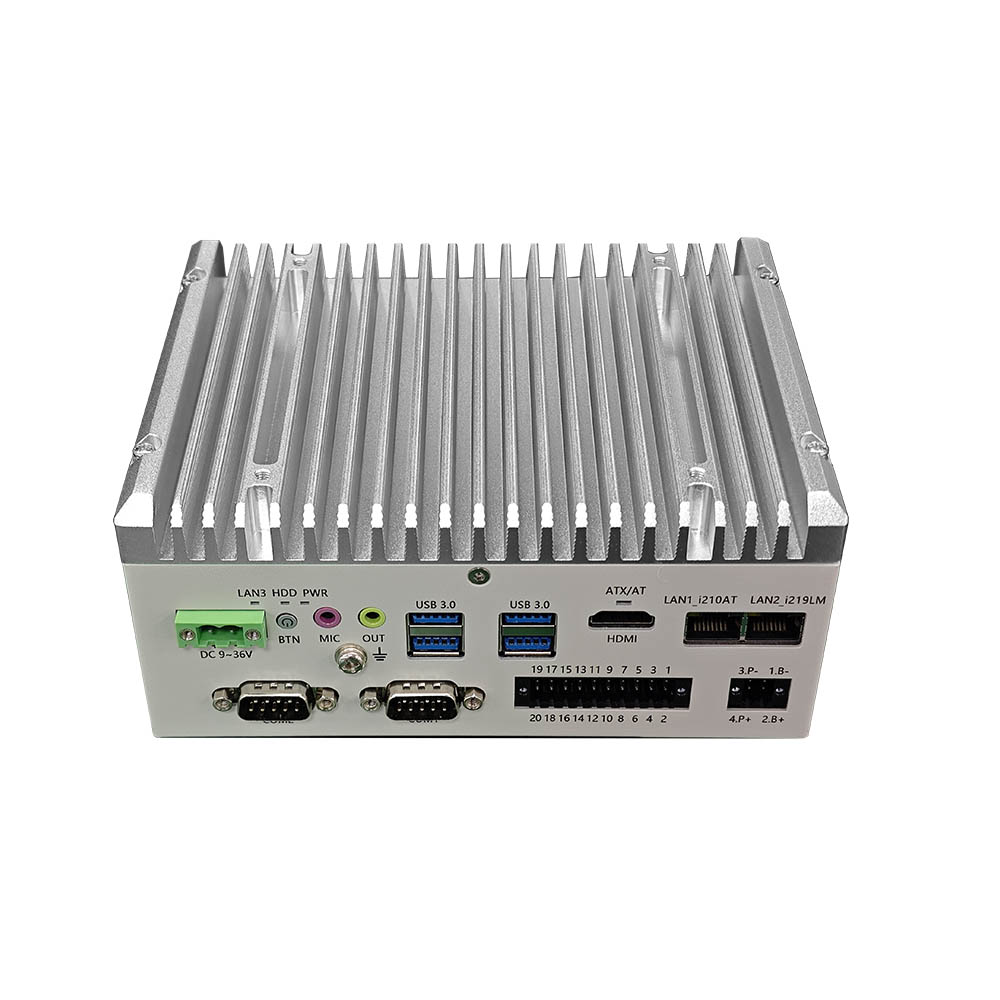

BPC-2403U Front View

Specification

• Model BPC-2403U
• CPU Intel® Core™ i7/i5/i3/Pentium®/Celeron® processors
• Chipset Intel® SOC
• BIOS AMI BIOS
• Memory 1 x SO-DIMM DDR4 2400/2666/2933/3200MHz，Max 32GB
• Video 1 x HDMI，Intel® HD Graphics controller
• Network 2 x GLAN (LAN1：Intel i210AT，LAN2：Intel i219LM)
• Storage 1 x m.2 2280 SATA/NVMe SSD slot
• USB 4 x USB3.2
• COM 2xCOM (COM1-2 RS232/422/485 BIOS setting)
• Expansion 1 x m.2 2230 E-Key supports WIFI module，1 x m.2 3052 B-Key supports 4G/5G module and SIM slot
• Audio Realtek ALC897 HD audio，1x Line-out，1x MIC-in
• GPIO Max16 GPIOs optional, standard GPIOs directly from the mainboard, or opt for opto-isolated rugged GPIOs.
• Watchdog supports system reboot from 1 to 255 seconds
• Power DC 9-36V wide voltage input with screw-lock power terminals
• OS support Windows 7/10/11/ Linux/ Domestically such as Tongxin Kylin, etc.
• Environment
• Operating temperature: -10°C ~60°C;
• Operating humidity: 0% ~ 95%;
• Storage temperature: -20°C ~ 70°C;
• Storage humidity: 30% ~ 60%;
• Vibration with SSD: 5Grms/5~500Hz/random;
• Shock with SSD: 50G/half-sine/lasts 11ms;

Ordering information

• Model Description
• BPC-2403U Din rail industrial computer, wall mount optional, 2COM, 2x GLAN, 4x USB, 16 GPIOs, 1HDMI, DC 9-36V
