10.4 inch industrial panel pc

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

10.4 Inch Panel Pc

10.4 Inch Industrial Pc

Features

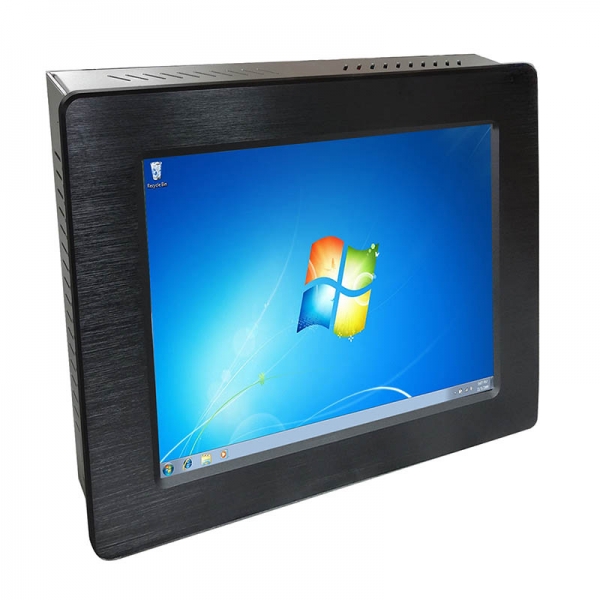

10.4" SVGA TFT LCD Panel support 800x600 pixels
6mm Aluminum front bezel with resitive touch scree
Intel Celeron J1900 Quad Core 2.0G CPU
Supports Windows XP, Win7/Win8/Win10, Linux

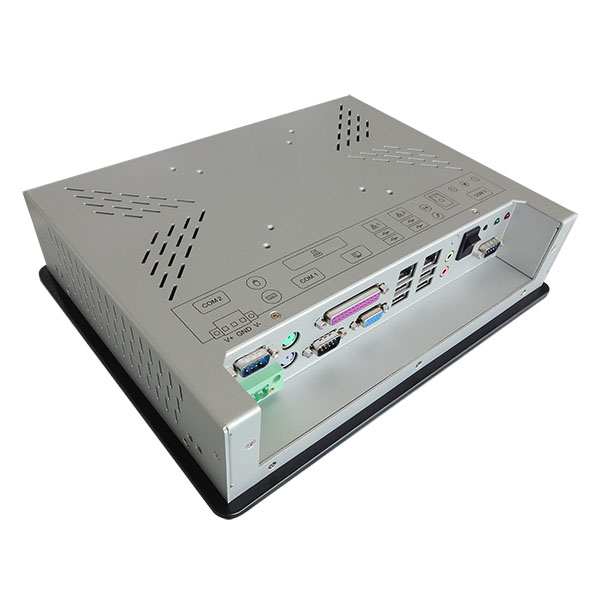

3xCOM(2*S232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC
1* Mini PCIe slot for wifi optional
Standard DC 12V input (Optional Wide range DC 9-36V input)
Panel (Flush) mount with clips Standard VESA 75/100mm support stand , wall mount and swing arm

Specifications

System

Processor Intel Celeron J1900
Chipset Intel Bay trail SOC
Memory DDR3 2G RAM (Max 8G)
Storage 1TB HDD(SSD optional)
Graphic Intel HD chipset
Ethernet 2 x 100/1000 LAN ports
Video 1 x VGA
Audio 1x Mic-in and 1x Line-out
USB Port 4 x USB 2.0
Serial Port 3*COM(2* RS232,1*RS422/RS485)
Parallel ports(LPT) 1 x SPP/EPP/ECP port
Keyboard /Mouse 2xPS/2
Power switch 1 x power switch
Expansive Slot 1 x Mini PCIe
Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
Construction Front aluminum bezel(6 mm) and steel chassis

LCD display

Display Type 10.4" SVGA TFT LCD
Resolution 800 x 600
Max.color 16.2M
Luminance 250 cd/m2
View Angle 160°(H) , 140°(V)
Pixel Pitch 0.264 x 0.264 mm
Contrast Ratio 600:1
Response Time 35 ms
LCD MTBF 50,000hrs

Touchscreen

Type Resistive Touchscreen with internal USB interface controller
Resolution Continuous
Light Transmission 80% or more
Surface hardness 3H
Operating Force ≤100g
Life Expectancy 35 Millions

Environmental

Operate temperature 32 °F~113 °F (0 °C to 45°C)
Storage temperature -4 °F~140 °F (-20 °C to 60 °C)
Storage humidity 10% to 90% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)

Power supply

Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
Output DC12V, output 26W

Packing info

Dimensions (WxHxD) 287.4 x 227.4 x 68mm
Weight Net: 4.5kg , Gross:7kg

Ordering informations

IPC-10A 10.4 inches industrial panel PC, with Intel J1900 Processor, 2G RAM, 1TB HDD, 3xCOM(2* RS232,RS422/RS485), 1x LPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x Audio, MIC, Resistive Touch Screen
IPC-10AL IPC-10A + Mini-PCIEwireless Lan card with antenna
