IPC-08A

IPC-08A

8.4 inch industrial panel PC

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [2] Images

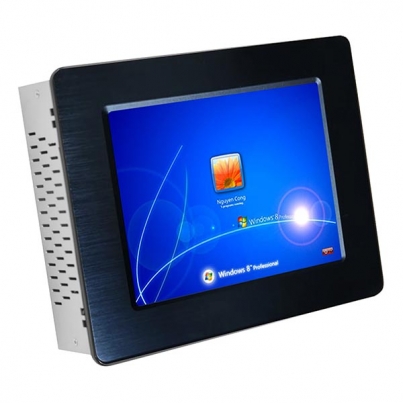

8 Inch Industrial Panel PC
8 Inch Industrial Panel PC

8 Inch Industrial Computer
8 Inch Industrial Computer

Features
  • 8.4" SVGA TFT LCD Panel support 800x600 pixels
  • 6mm Aluminum front bezel with resitive touch scree
  • Intel Celeron J1900 Quad Core 2.0G CPU
  • Supports Win7/Win8/Win10, Linux

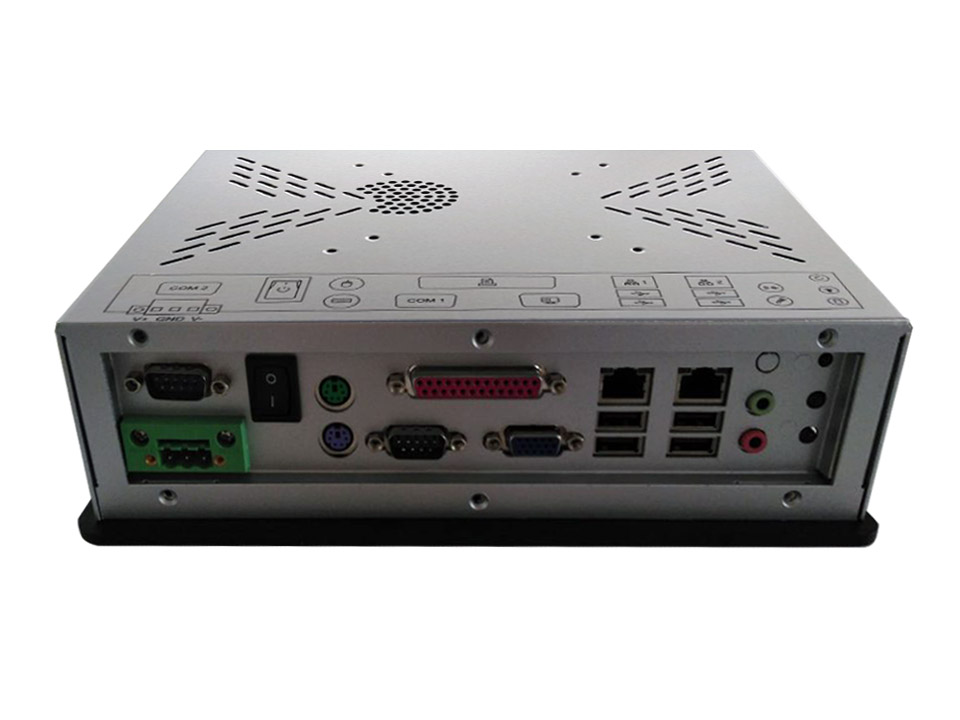

  • 2xCOM(1*S232,1*RS422/RS485) , 1x LPT, 2x PS/2, 1xVGA, 4xUSB2.0, 2xLAN, 1x Audio, MIC
  • 1* Mini PCIe slot for wifi optional
  • Standard DC 12V input (Optional Wide range DC 9-36V input)
  • Panel (Flush) mount with clips Standard VESA 75/100mm support stand , wall mount and swing arm
Specifications
System
  • Processor Intel Celeron J1900
  • Chipset Intel Bay trail SOC
  • Memory DDR3 4G RAM (Max 8G)
  • Storage 2.5" HDD/ SSD ( Size optional)
  • Graphic Intel HD chipset
  • Ethernet 2 x 100/1000 LAN ports
  • Video 1 x VGA
  • Audio 1x Mic-in   and 1x Line-out
  • USB Port 4 x USB 2.0
  • Serial Port 2*COM(1* RS232,1*RS422/RS485)
  • Parallel ports(LPT) 1 x SPP/EPP/ECP port
  • Keyboard /Mouse 2xPS/2
  • Power switch 1 x power switch
  • Expansive Slot 1 x Mini PCIe
  • Power supply DC12V input (Optional 8-30V), 100~240V AC , 50/60Hz, external ac adapter
  • Construction Front aluminum bezel(6 mm) and steel chassis
LCD display
  • Display Type 8.4" SVGA TFT LCD(LED backlight)
  • Resolution 800*600
  • Max.color 16.2M
  • Luminance 250 cd/m2
  • View Angle 160°(H) , 140°(V)
  • Pixel Pitch 0.292 x 0.292 mm
  • Contrast Ratio 600:1
  • Response Time 30 ms
  • LCD MTBF 50, 000hrs
Touchscreen
  • Type Resistive Touchscreen with internal USB interface controller
  • Resolution Continuous
  • Light Transmission 80% or more
  • Surface hardness 3H
  • Operating Force ≤100g
  • Life Expectancy 35 Millions
Environmental
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 10% to 90% non-condensing
  • Anti-Vibration 17HZ-500 HZ 1G PTP
  • Anti-Shock 1G / peak( 11m sec)
Power supply
  • Input 100~240VAC , 50/60Hz, external ac adapter with lockable connector
  • Output DC12V, output 23.5W
Packing info
  • Dimensions (WxHxD) 248.8 x 196.8 x 70mm
  • Weight Net: 4kg , Gross:5.6 kg
Ordering informations
  • IPC-08A 8.4" industrial panel PC, with Intel J1900 Processor, 4G RAM(Optional 8G), 2.5" SSD/HDD (Size optional), 2xCOM(1* RS232,1*RS422/RS485), 1x LPT, 2x PS/2, 1xVGA, 4xUSB, 2xLAN, 1x Audio, MIC, Resistive Touch Screen
  • IPC-08AL IPC-08A + Mini-PCIEwireless Lan card with antenna
