IPC-15i7

IPC-15i7

15 inches i7 i5 i3 Industrial Panel PC with 1xPCI

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

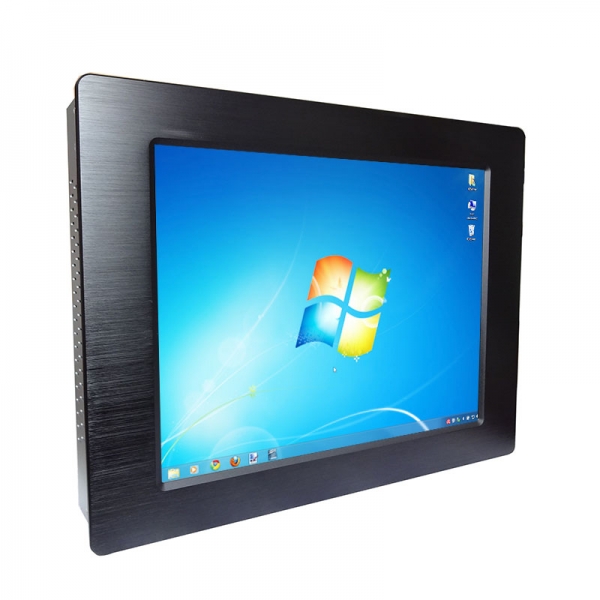

15 Inch Industrial Panel Pc
15 Inch Industrial Panel Pc

I7 Touch Screen PC
I7 Touch Screen PC

I3 Touch Screen PC
I3 Touch Screen PC

I5 Touch Screen PC
I5 Touch Screen PC

IPC-15I7 is a high performance 15" Panel PC industrial all in one version supports i5-3470 i3-3240 and i7-3770 Processor with touch screen option, DVI, VGA , Audio, 2 Lan, 6 USB, preload sata SSD 250G  and 4G RAM, the size for them are optional, Optional to equipped 6 COM 5x RS232 and 1x RS485/422, OEM is accpted for industrial Automation equipments.  Supports Microsoft® Windows 7/8, Microsoft ® Windows 10,  Linux. It is suitable for any harsh industrial environments.

Features
  • 15" TFT SXGA LED Panel (1024 x 768) industrial all in one panel pc
  • Supports Intel Core i7/i5/i3 processor
  • System supports 1 x DDR3 DIMM slot ,up to 8G 1066/1333MHz SDRAM
  • 6x COM (1x RS485), 1xDVI, 1x PS/2, 1xVGA, 6x2.0 USB, 2xLAN, 1x Audio & MIC
  • Offers 1xPCI Expressx16 slot and 1 xMini PCIe slot, for expansion
  • Rear panel with power LED and HDD LED Indication, Built-in 2x 3 Watts stereo speaker
  • Wireless LAN with antenna (optional), GPIO (optional)
  • Robust aluminum with IP65 compliant front bezel design
  • Modularize design for easy installation and maintenance
  • Panel ( Flush ) mount with clip or Standard VESA 75/100mm support stand, wall mount and swing arm
Specifications
Main System
  • CPU Intel Core i7/i5/i3 Sandy bridge Processor with1066/1333 MHz    FSB
  • Chipset Intel H61 chipset
  • System Memory Max 8 GB RAM; Preload 4GB RAM
  • LAN 2x Realtek® RL8111x (Gigabit ) 10/100/1000Ethernet
  • HDD (hard disk ) 2.5" SATA HDD/ SSD; Preload 250GB SSD
  • Audio Realtek® ALC662, 5.1 channel surround Audio
  • I/O Connector 5 x RS-232
    1 x RS422/485
    1x DVI-D port
    1x PS/2 (Keboard/mouse)
    1x DB-15 Connector
    1x Audio (Mic-in / Line-out)
    2x 10/100/1000MLAN port ( RJ-45 )
    6x USB2.0
    1x 3Pin DC power input terminal block
  • Expansion 1xPCI Express x16 Slot, 1 x Mini PCIe slot
General
  • Construction Aluminum front bezel and Aluminum chassis
  • Color Black or OEM(>=100 units)
  • OS Support Windows 10/8/7, Windows XP, Linux
  • Mounting Panel mount or Standard VESA 75/100mm
  • Power supply Input Voltage : 8~30v, with External AC adapter; Output Rating    92W
LCD display
  • Display type 15" XGA TFT LCD LED Backlight
  • Resolution 1024 x 768 pixels
  • Luminance 450 cd/m2
  • Viewing angle 160°(H) , 160°(V)
Touchscreen
  • Type Analog Resistive 5-wire
  • Controller Interface Internal USB interface controller
  • Resolution Continuous
  • Light Transmission 81% or more
  • Operating Force ≤100g
  • Life Expectancy 35 Million
Environmental
  • Operate temperature -10°C~ 60°C (-14~140°F)
  • Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
  • Storage humidity 5% to 95% @40°C non-condensing
  • Vibration 17 to 500HZ 1G PTP
  • Operating Shock 1G /peak ( 11m sec)
  • Ingress Protection Front panel: IP65
Packing info
  • Dimensions(WxHxD) 406 x 312 x 90mm
  • NET weight 8.5 KG
Ordering informations
  • IPC-15i7 15" Industrial Panel PC with Intel i7/i5/i3 Processor, 2.5"SATA SSD/ HDD size optional (Preload 250G SSD), 4G RAM(8G optional), 6*COM(5*    RS232.1 * 485), 1*VGA, 1* DVI,6*USB 2.0, 2*LAN, 1* Audio, 1* MIC, 1* PS2
  • IPC-15i7T 15" Industrial Panel PC  IPC-15i7 with touch screen
  • CPU Description Intel® Core™ i3-3240 Processor (3M Cache, 3.40 GHz)
    Intel® Core™ i5-3470 Processor (6M Cache, up to 3.60 GHz)
    Intel® Core™ i7-3770 Processor (8M Cache, up to 3.90 GHz)
         Other LGA1155 socket CPU
