Rackmount LCD Monitor

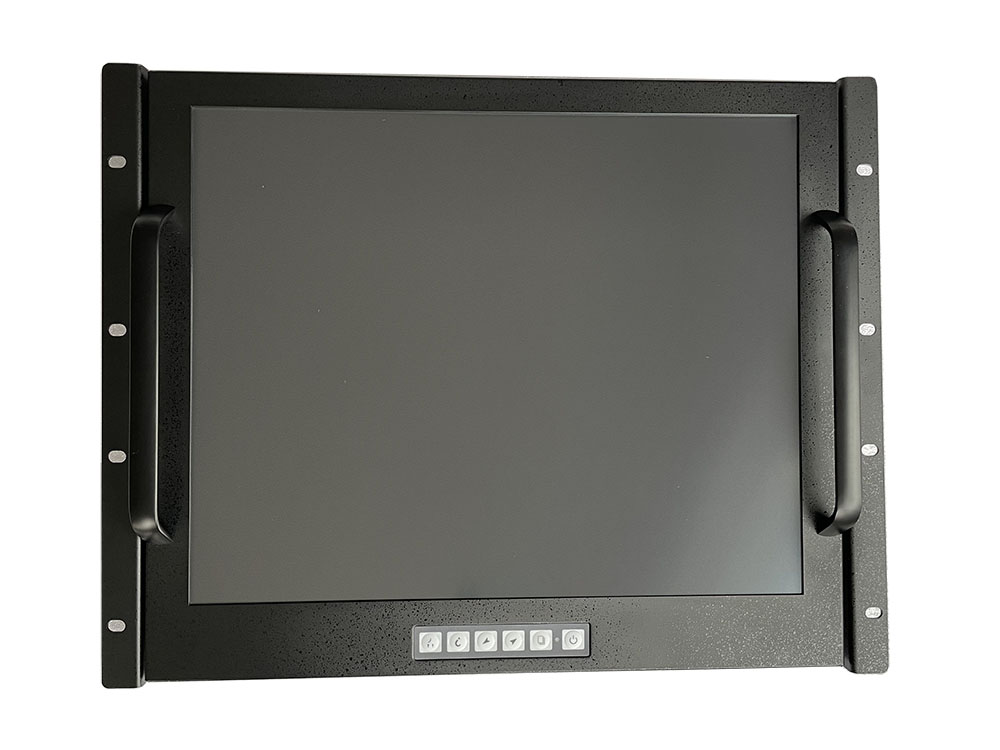

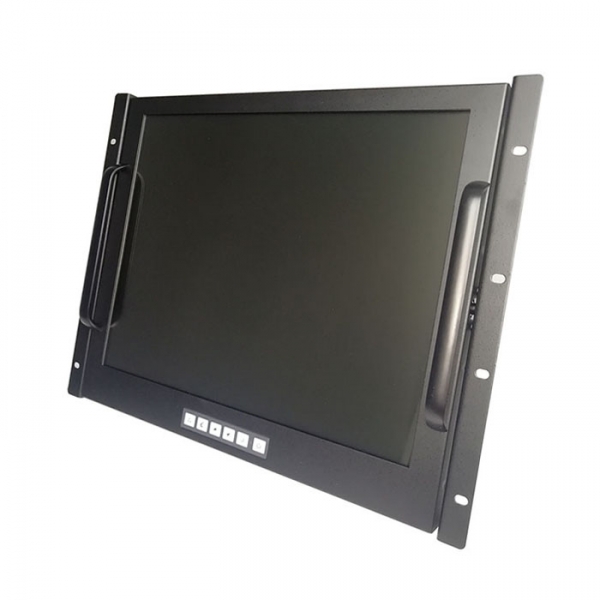

Rack mount 17 inches lcd monitor

Rack mount 17 inches lcd monitor

Model NO. RCIM-17

Customization OEM accepted

Datasheet (PDF) Dimensions Drawing [4] Images

Rack Mount Monitor

Rack Monitor

17 Inch Rackmount Monitor

Rack LCD Monitor

Features

Compact 17" LCD rackmount display monitor, 8U height
17" SXGA TFT LCD Panel support 1280x1024 pixels
90°tilt adjustment while mounted in rack: +45°~ -45°
Input signal : VGA + DVI/HDMI + Audio, BNC. AV, S-vedio is optional
Build in 2x2 watts stereo speaker for audio voice output
OSD control keys to optimize the display
AC 100-240V wide range external 12V DC ac adapter
DC-DC wide range 8~30V power input
Heavy duty steel rackmount chassis with strengthen glass (Touch option)
Rackmount or standard VESA hole ( 100x100 mm ) mounting

Specifications

Display

Display Type 17" SXGA TFT LCD
Resolution 1280x1024
Max.color 16.7M
Luminance 300 cd/m2
View Angle 178°(H) , 178°(V)
Pixel Pitch 0.264 x 0.264mm
Contrast Ratio 1000:1
Response Time 5 ms
LCD MTBF 50,000hrs

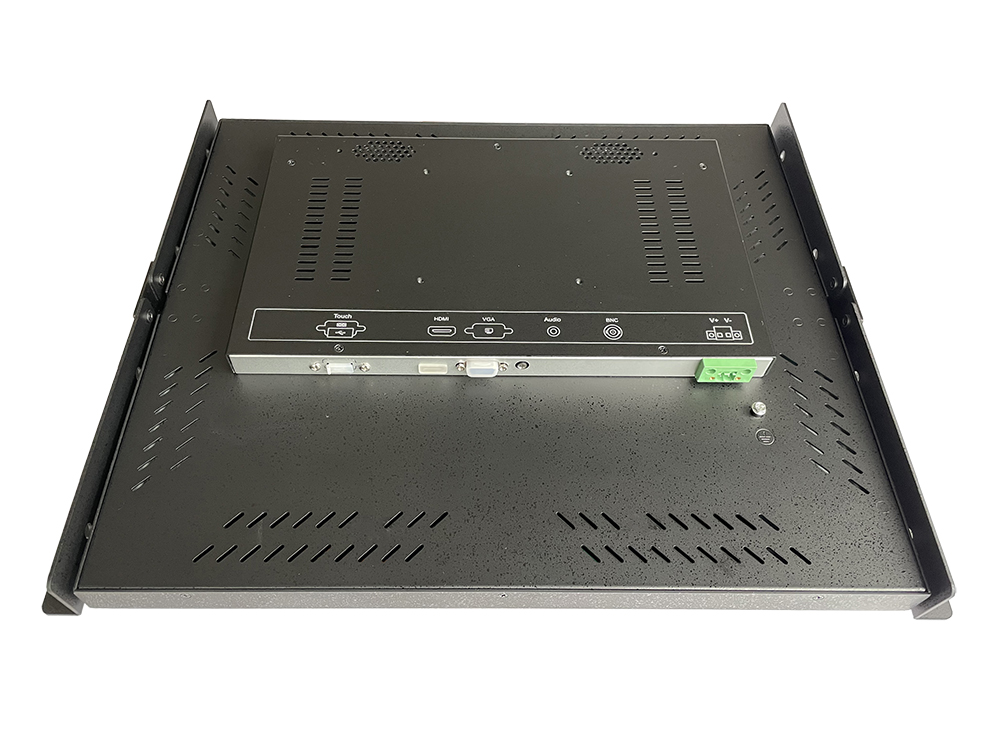

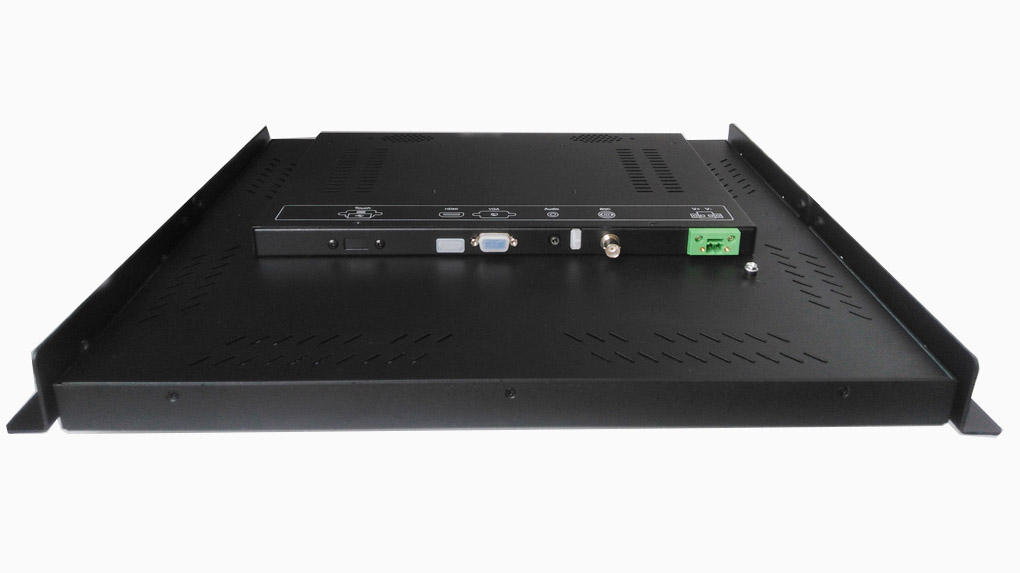

Input Signals

RGB Signal D-SUB 15P Connector (female)
DC input Aviation 2pin Plug
DVI-D Signal DVI-D input 24pin connector (female)
Touch screen RS232 (option) D-SUB 9p connector (female)
Touch screen USB (option) USB-A type connector (female)

Available Options

Touch screen Resistive Type with USB and RS232 controller
DC Power Input Wide Range 8~30v DC input

Power supply

Standard 100~240VAC,50/60Hz, DC12V@ 5A / 60W ,external ac adapter
DC-DC Power DC 8 ~ 30v input power module(optional)

Environmental

Construction Rackmountable, Heavy duty steel chassis
Operate temperature -10°C~ 60°C (-14~140°F)
Storage temperature -20°C ~ 70°C (-4 ~ 158°F)
Storage humidity 5% ~ 95% non-condensing
Anti-Vibration 17HZ-500 HZ 1G PTP
Anti-Shock 1G / peak( 11m sec)
Certification and Approvals CE/FCC/ROHS

Packing info

Dimensions (WxHxD) 482.6 x 354.8 x 48 mm
Weight Net: 7.0kg , Gross:10.3kg

Ordering informations

RCIM-17 17" LCD Industrial Rackmount Monitor with VGA + DVI/HDMI + Audio Input
RCIM-17TC 17" Rack mount LCD Monitor with VGA + DVI/HDMI + Audio Input, with touch screen and RS232 controller
RCIM-17TU 17" LCD Rackmount Monitor with VGA + DVI/HDMI + Audio Input, with touch screen and USB controller
