Industrial Network Appliance - Anxin Intelligent

Wide temperature Fanless Industrial Embedded computer with 4 GbE Rj45 2 RS232 5 RS485

Onboard Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Four Gigabit Ethernet ports, support one channel LAN BYPASS
Two RS232 RJ-45 port
Five RS-485 COM isolated interface
Optional a 4G model(external SIM slot)
Four USB2.0, mSATA storage
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Widely used in industrial-application environments

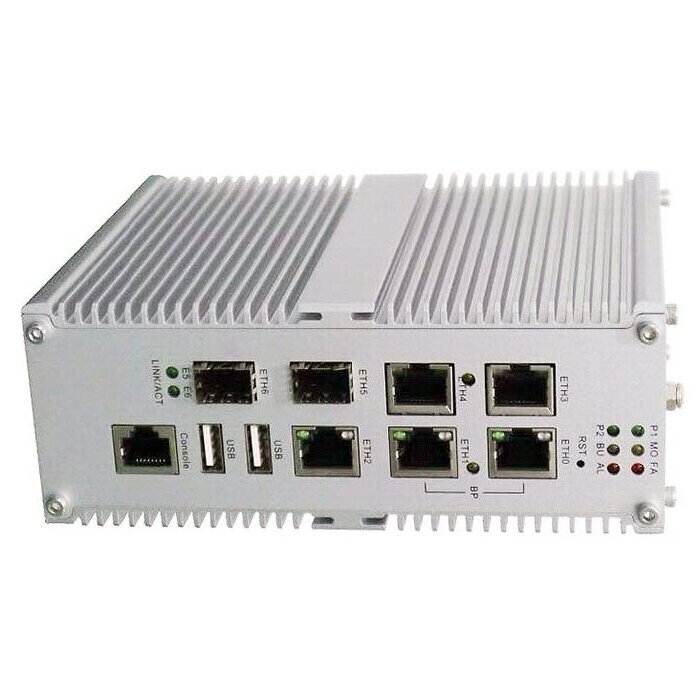

Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Five Gigabit Ethernet ports, support one channel LAN BYPASS
Two SFP Gigabit network ports with led indicator
One RJ-45 Console serial port, one RS-485 isolated phoenix interface
Two USB2.0, mSATA storage
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Widely used in industrial-application environments

low power Intel Atom E3845 processor, 1.91GHz, 2MB cache
One 1600MHz DDR3L RAM slot, Max 8GB RAM
Three Gigabit Ethernet ports, support one channel LAN BYPASS
One RJ-45 Console serial port, one RS-485 isolated interface
Two USB2.0, mSATA storage
Supports one external SIM slot for full netcom 4G module and another external SIM slot for full netcom 5G/4G module
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support to customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Support industrial-application environment

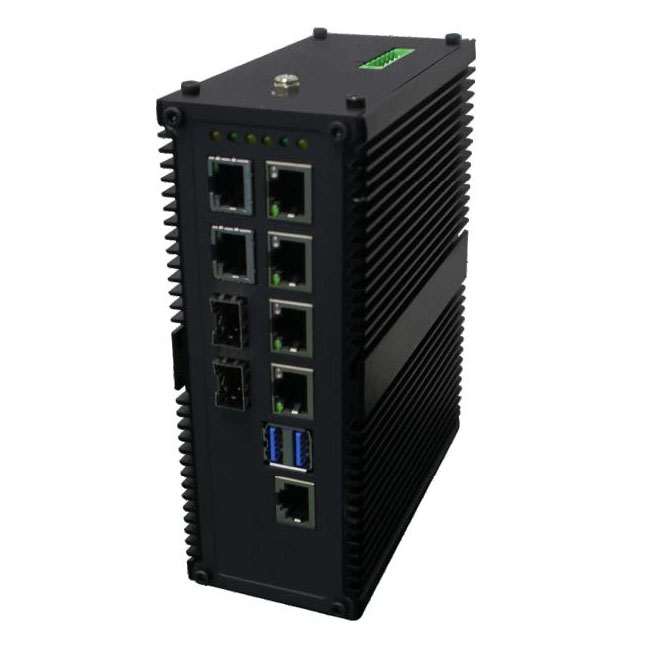

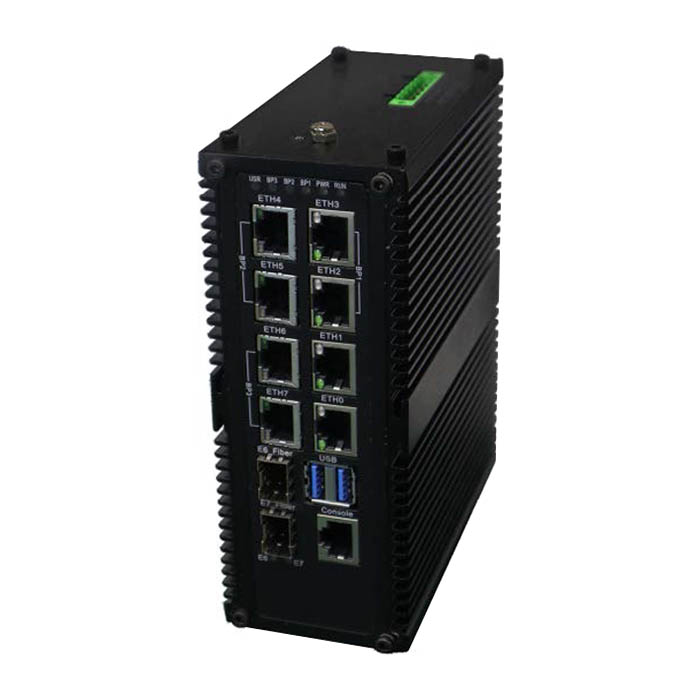

Onboard Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Seven Gigabit Ethernet ports, support Two channels LAN BYPASS
Two RS232 port(1 xRJ45 and 1x DB9)
One RS485 COM isolated phoenix interface
Optional a 4G model(external SIM slot)
Two USB2.0, mSATA storage
Two 9~36V DC inputs, with alarm for power failure
Multi-function LED indicators , support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Widely used in industrial-application environments

Onboard Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
One 204pin 1600MHz DDR3L RAM, max 8GB RAM
Four Gigabit Ethernet ports, support Two channels LAN BYPASS
Two RS232 RJ45 port
Three RS485 COM phoenix interface with static protection
Two CAN phoenix interface with isolated protection
Optional a 4G model(external SIM slot)
Four USB2.0, mSATA storage
Two 9~36V DC inputs, with alarm for power failure
Multi-function LED indicators, support customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL type installation
Widely used in industrial-application environments

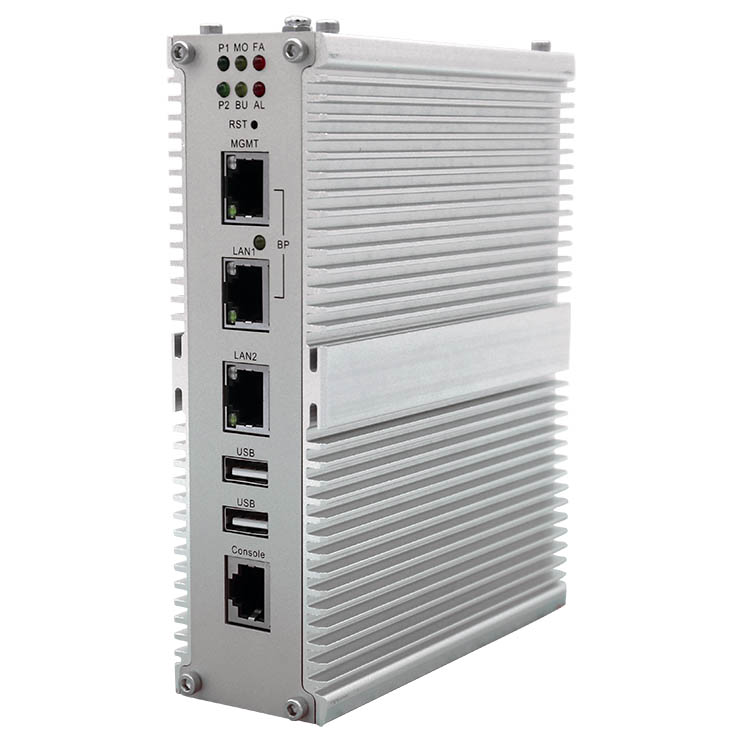

Din rail industrial computer, network application appliance
Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
Onboard 2GB 1600MHz DDR3L RAM, optional 4GB RAM
Three Gigabit Ethernet ports, support one channel LAN BYPASS
One RJ-45 Console serial port, Optional RS-485 isolated interface
Two USB2.0, mSATA storage
Two 9~36VDC wide voltage DC inputs, with alarm for power failure
Multi-function LED indicators , support to customize according to requirements
Fanless thermally conductive aluminum extrusion to support wide temperature working
Support DIN-RAIL rail type installation
Support industrial-application environment
