  3. Industrial network appliation appliance with 5 Rj45 GbE and 2 SFP GBE network ports 4G module SIM slot

F19308

F19308

Industrial network appliation appliance with 5 Rj45 GbE and 2 SFP GBE network ports 4G module SIM slot

Country of Origin: China
Customization OEM accepted

Datasheet (PDF) [4] Images

Industrial Network Appliance
Industrial Network Appliance

Industrial Nework Hardware
Industrial Nework Hardware

Samll Network Appliance
Samll Network Appliance

Samll Network Hadware Appliance
Samll Network Hadware Appliance

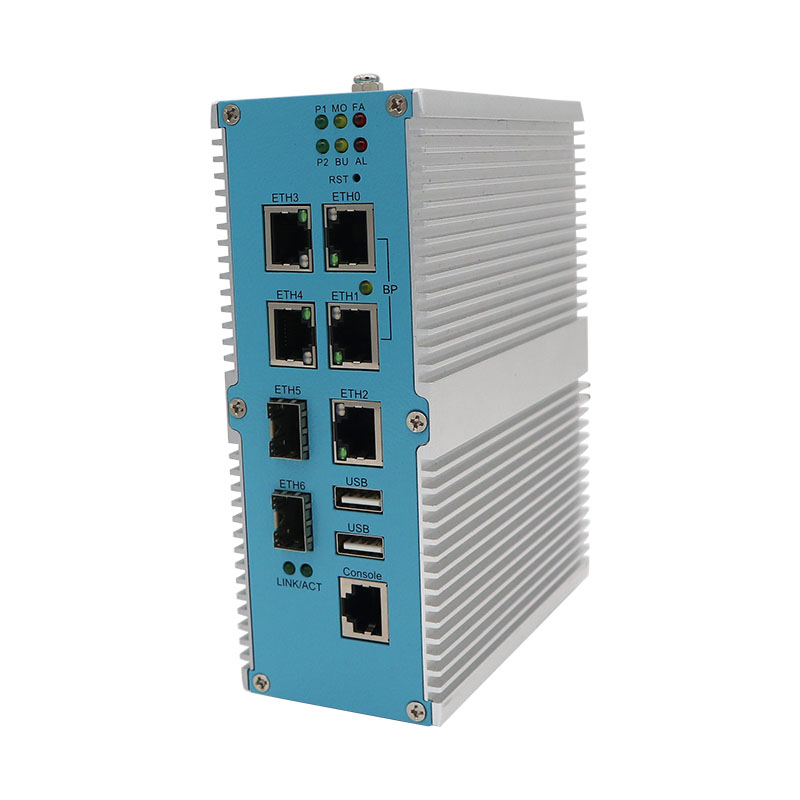

Wide-temperature, Industrial network application appliance, high reliability, small size support DIN-RAIL rail type installation. onboard Intel© E3845 processor, 5 RJ-45 GbE network ports and 2 SFP GbE network ports,RS485 & RS232 One mSATA interface, Dual 9-36V DC in

Features
  • Onbaord Intel low-power Atom quad-core E3845 processor, 1.91GHz, 2MB cache
  • One 204pin 1600MHz DDR3L RAM, max 8GB RAM
  • Five Gigabit Ethernet ports, support one channel LAN BYPASS
  • Two SFP Gigabit network ports with led indicator
  • One RJ-45 Console serial port, one RS-485 isolated phoenix interface
  • Two USB2.0, mSATA storage
  • Two 9~36VDC wide voltage DC inputs, with alarm for power failure
  • Multi-function LED indicators , support customize according to requirements
  • Fanless thermally conductive aluminum extrusion to support wide temperature working
  • Support DIN-RAIL rail type installation
  • Widely used in industrial-application environments
Specifications
Motherboard
  • CPU Onboard Intel Atom 32nm quad-core E3845 1.91GHz processor with 2MB L2 cache
  • BIOS SPI FLASH BIOS
  • System memory Max 4GB RAM
Storage
  • Interface One SATA Interface
  • SSD MAX 512G industrial m SATA SSD
  • CF slot None
Ethernet
  • LAN Port Rj45 Five 10/100/1000Mbps RJ45 network interfaces
  • LAN prot SFP Two SFP GBE ports
  • BYPASS Suppoer one channel LAN BYPASS
  • Indicator With LAN link, active, speed LED, built-in BYPASS status LED
External I/O
  • USB Two USB2.0
  • COM One RJ-45 COM console
  • Indicator One Power LED, one HDD LED
Internal I/O
  • Display One built-in VGA interface, supports hot plug, maximum resolution support 2048x1536
  • USB Two USB2.0 Pin interface
  • Button One built-in reset button

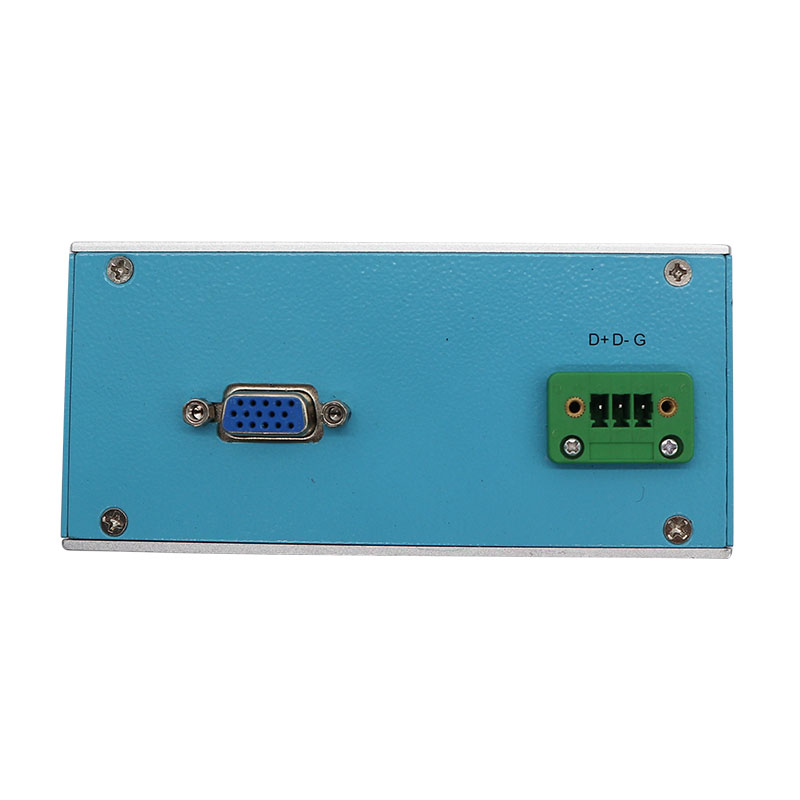

  • COM One RS232 DB9 interface, One RS-485(3-pin phoenix interface)
  • TPM One TPM interface
  • DIO 8 digital level input and output interfaces (4 inputs, 4 outputs)
  • Watchdog 1~255 seconds programmable software watchdog, support system reset
  • 4G module Optional One full Netcom 4G module, external SIM slot
Power supply
  • Power consumption 60W power adapter

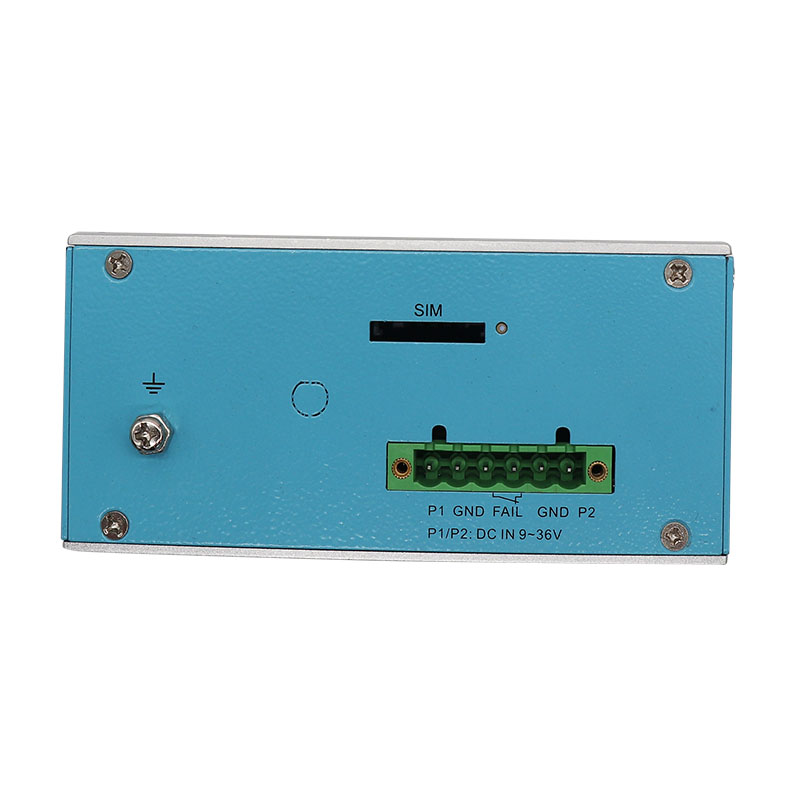

  • Power input Dual 9 ~ 36V wide range DC input
Environmental

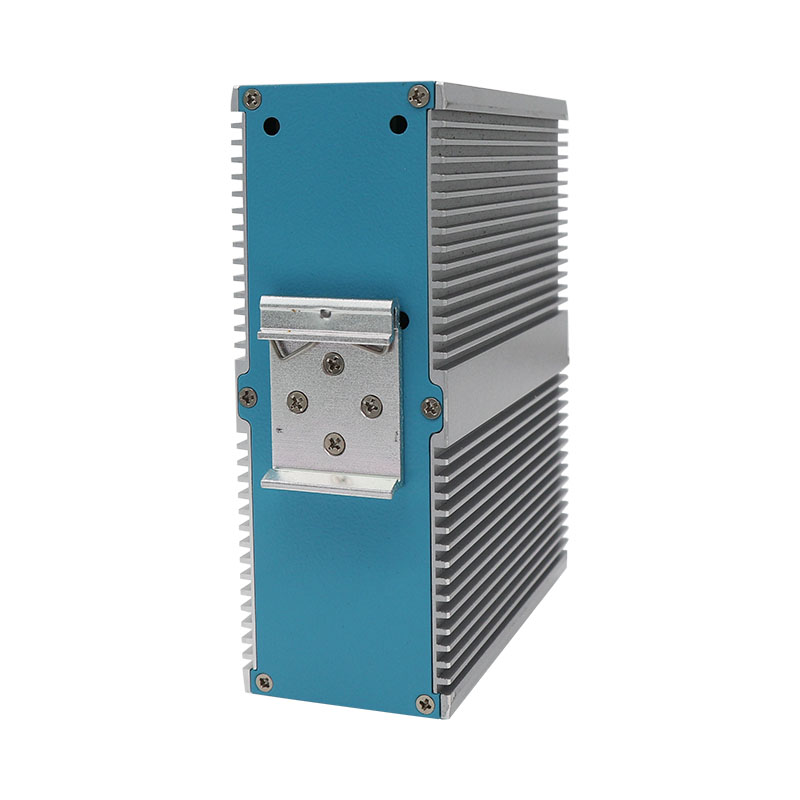

  • Mounting Support DIN-RAIL rail type installation
  • Operate Temperature -40°C ~ 70°C
  • Storage Temperature -50°C ~ 85°C
  • Operate Humidity 5% ~ 85% non-condensing @ 40°C
  • Storage Humidity 5% ~ 95% non-condensing
Mechanical
  • Chassis Color Silver and Blue
  • Front panel Front panel silk-screen [Customized LOGO optional]
  • Construction Aluminum extrusion chassis
  • Dimensions (D x W x H) 158.1x122x60.8 mm
  • Weight 3.0 kg
Ordering informations
  • F19308 Aluminum extrusion chassis, E3845 CPU, 5 x GbE RJ45 with one lan bypass, 2x GBE SFP ports,2x RS232,1x RS485, 60W Power adapter
